IDT49FCT805/A

Features:

* 0.5 MICRON CMOS Technology
* Guaranteed low skew < 700ps (max.)
* Low duty cycle distortion < 1ns (max.)
* Low CMOS power levels
* TTL compatible inputs and outputs
* Rail-to-rail output voltage swing
* High drive: -24mA IOH, 64mA IOL
* Two independent output banks with 3-state control
* 1:5 fanout per bank
* 'Heartbeat' monitor output
* Available in DIP, SOIC, SSOP (805 only), QSOP (805 only), Cerpack and LCC packages
* Military product compliant to MIL-STD-883, Class B

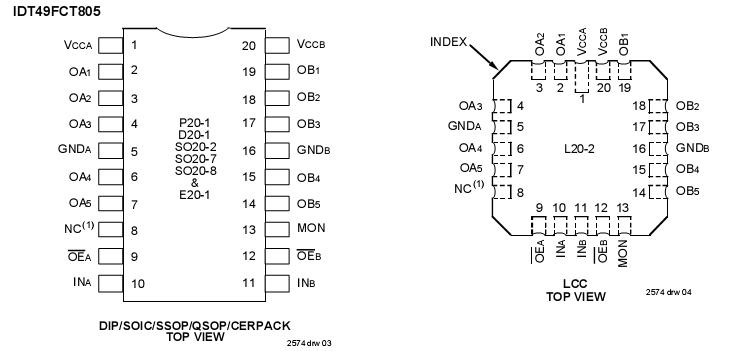

Pinout




Specifications

VTERM(2)    Terminal Voltage with Respect to GND    0.5 to +7.0             V
VTERM(3)    Terminal Voltage with Respect to GND    0.5 to V(CC) +0.5   V
TSTG            Storage Temperature                             65 to +150             °C
IOUT            DC Output Current                                 60 to +120             mA

Description

The IDT49FCT805/A and IDT49FCT806/A are clock drivers built using advanced dual metal CMOS technology. The IDT49FCT805/A is a non-inverting clock driver and the IDT49FCT806/A is an inverting clock driver. Each device consists of two banks of drivers. Each bank drives five output buffers from a standard TTL compatible  input.  The devices feature a "heartbeat" monitor for diagnostics and PLL driving. The MON output is identical to all other outputs and complies with the output specifications in this document.  The IDT49FCT805/A and IDT49FCT806/A offer low capacitance inputs with hysteresis.  Rail-to-rail output swing improves noise margin and allows easy interface with CMOS inputs.
