IDT49FCT3805PYB

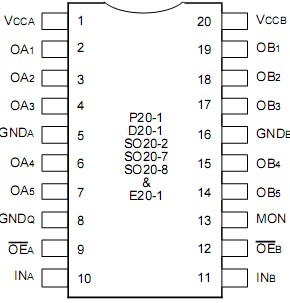

NOTES:3102 lnk 03
1.Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device.  This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is nt implied.  Exposure to absolute maximum rating conditions for ex- tended periods may affect reliability.
2.Vcc  terminals.
3.Input terminals.
4.Output and I/O terminals.

The IDT49FCT3805PYB is a 3.3 volt, non-inverting clock driver built using advanced dual metal CMOS technology.  The device consists of two banks of drivers, each with a 1:5 fanout and it s own output enable control.  The device has a "heartbeat" monitor for diagnostics and PLL driving.  The MON output is identical to all other outputs and complies with the output specifications in this document.  The IDT49FCT3805PYB offers low capacitance inputs with hysteresis.

The IDT49FCT3805PYB is designed for high speed clock distribu- tion where signal quality and skew are critical.  The FCT 3805 also allows single point-to-point transmission line driving in applications such as address distribution, where one signal  must be distributed to multiple receivers with low skew and high signal quality.
