IDT49C465

Features: •32-bit wide Flow-thruEDCunit, cascadable to 64 bits•Single-chip 64-bit Generate Mode•Separate system and memory buses•On-chip pipeline latch with external control•Supports bidirectional and common I/O memories•Corrects all single-bit errors•Dete...

product image

IDT49C465 Picture
See larger image
SeekIC No. : 004371681 Detail

IDT49C465: Features: •32-bit wide Flow-thruEDCunit, cascadable to 64 bits•Single-chip 64-bit Generate Mode•Separate system and memory buses•On-chip pipeline latch with external control&...

IDT49C465 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT49C465
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/14

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

•32-bit wide Flow-thruEDC unit, cascadable to 64 bits
•Single-chip 64-bit Generate Mode
•Separate system and memory buses
•On-chip pipeline latch with external control
•Supports bidirectional and common I/O memories
•Corrects all single-bit errors
•Detects all double-bit errors, some multiple-bit errors
•Error Detection Time - 12ns
•Error Correction Time - 14ns
•On chip diagnostic registers.
•Parity generation and checking on system data bus
•Low power CMOS - 100mA typical at 20MHZ
•144-pin PGA  and PQFP packages
•Military product compliant to MIL-STD 883, Class B


Pinout

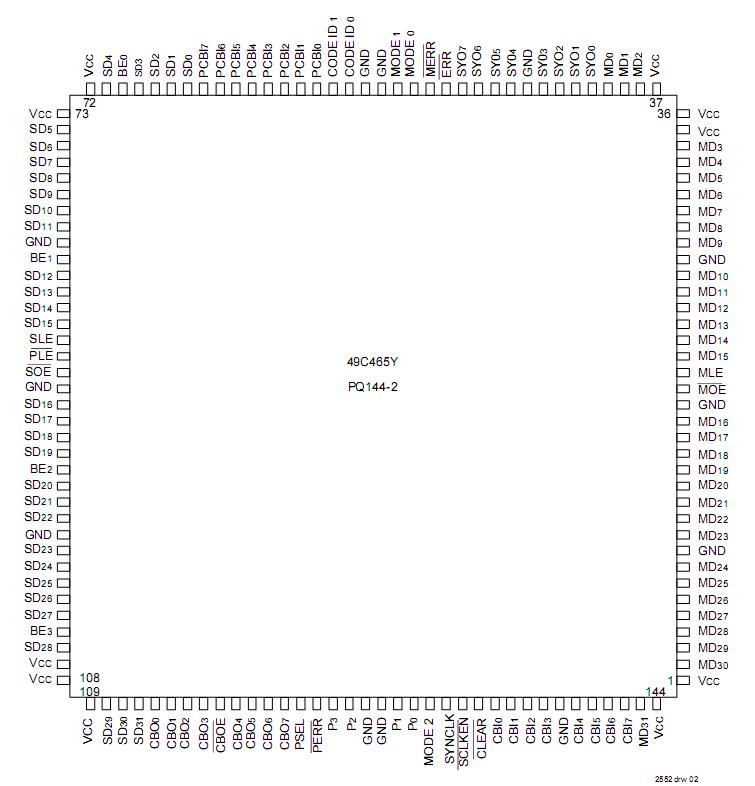

Connection Diagram


Specifications

Symbol Rating Com'l. . Mil Unit
VCC Power Supply 0.5 to +7.0 0.5 to +7.0 V
VTERM Terminal Voltage with Respect to Ground 0.5 toVCC + 0.5 0.5 toVCC + 0.5 V
TA Operating 0 to +70 55 to +125 °C
TBIAS Temperature Under Bias 55 to +125 65 to +135 °C
TSTG Storage
Temperature		 55 to +125 65 to +150 °C
IOUT DC Output
Current		 30 30 mA



Description

unit. The chip of the IDT49C465 provides single-error correction and two and It can be expanded to 64-bit widths by cascading 2 units,control. The EDC unit has been designed to be used in either of two configurations in an error correcting memory system.  The bidirectional configuration is most appropriate for systems using bidirectional memory buses. A second system configuration utilizes external octal buffers, and is well suited The IDT49C465 supports partial word writes, pipeliningand error diagnostics.  It also provides parity protection for data on the system side.
