Features: • Phase-Lock Loop Clock Distribution• 10MHz to 200MHz operating frequency• Distributes one clock input to one bank of five and one bank of four outputs• Separate output enable for each output bank• Output Skew < 250ps• Low jitter <200 ps cycle-to...
IDT23S09E: Features: • Phase-Lock Loop Clock Distribution• 10MHz to 200MHz operating frequency• Distributes one clock input to one bank of five and one bank of four outputs• Separate ou...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

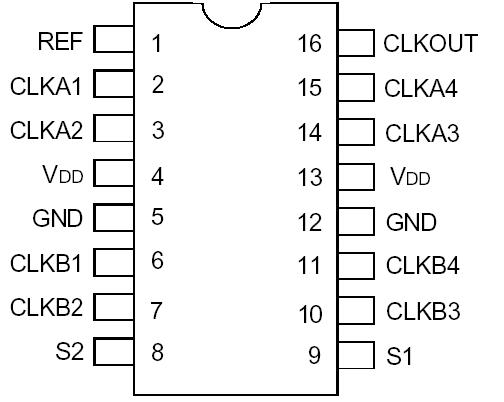

Symbol | Rating | Max. | Unit |
VDD | Supply Voltage Range | 0.5 to +4.6 | V |
VI (2) | Input Voltage Range (REF) | 0.5 to +5.5 | V |
VI | Input Voltage Range (except REF) |
0.5 to VDD+0.5 |
V |
IIK (VI < 0) | Input Clamp Current | 50 | mA |
IO (VO = 0 to VDD) | Continuous Output Current | ±50 | mA |
VDD or GND | Continuous Current | ±100 | mA |
TA = 55°C (in still air)(3) |
Maximum Power Dissipation | 0.7 | W |
TSTG | Storage Temperature Range | 65 to +150 | °C |
Operating Temperature |
Commercial Temperature Range |
0 to +70 | °C |
Operating Temperature |
Industrial Temperature Range |
-40 to +85 | °C |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
3. The maximum package power dissipation is calculated using a junction temperature of 150°C and a board trace length of 750 mils.
The IDT23S09E is a high-speed phase-lock loop (PLL) clock buffer, designed to address high-speed clock distribution applications. The zero delay is achieved by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 200MHz. The IDT23S09E is a 16-pin version of the IDT23S05E.
The IDT23S09E accepts one reference input, and drives two banks of four low skew clocks. The -1H version of this device operates up to 200MHz frequency and has higher drive than the -1 device. All parts have on-chip PLLs which lock to an input clock on the REF pin. The PLL feedback is on-chip and is obtained from the CLKOUT pad. In the absence of an input clock, the IDT23S09E enters power down. In this mode, the device will draw less than 12µA for Commercial Temperature range and less than 25µA for Industrial temperature range, and the outputs are tri-stated.
The IDT23S09E is characterized for both Industrial and Commercial operation.
