IDT23S05E

Features: • Phase-Lock Loop Clock Distribution• 10MHz to 200MHz operating frequency• Distributes one clock input to one bank of five outputs• Zero Input-Output Delay• Output Skew < 250ps• Low jitter <200 ps cycle-to-cycle• IDT23S05E-1 for Standard Dr...

product image

IDT23S05E Picture
See larger image
SeekIC No. : 004371645 Detail

IDT23S05E: Features: • Phase-Lock Loop Clock Distribution• 10MHz to 200MHz operating frequency• Distributes one clock input to one bank of five outputs• Zero Input-Output Delay• O...

IDT23S05E Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
IDT23S05E
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/31

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Phase-Lock Loop Clock Distribution
• 10MHz to 200MHz operating frequency
• Distributes one clock input to one bank of five outputs
• Zero Input-Output Delay
• Output Skew < 250ps
• Low jitter <200 ps cycle-to-cycle
• IDT23S05E-1 for Standard Drive
• IDT23S05E-1H for High Drive
• No external RC network required
• Operates at 3.3V VDD
• Power down mode
• Spread spectrum compatible
• Available in SOIC package


Application

• SDRAM
• Telecom
• Datacom
• PC Motherboards/Workstations
• Critical Path  Delay Designs


Pinout

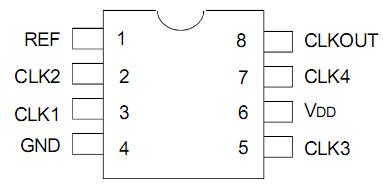

Connection Diagram


Specifications

Symbol Rating Max. Unit
VDD Supply Voltage Range 0.5 to +4.6 V
VI(2) Input Voltage Range (REF) 0.5 to +5.5 V
VI Input Voltage Range
(except REF) 		0.5 to VDD+0.5 V
IIK (VI < 0) Input Clamp Current 50 mA
IO (VO = 0 to VDD) Continuous Output Current ±50 mA
VDD or GND Continuous Current ±100 mA
TA = 55
(in still air)(3)		 Maximum Power Dissipation 0.7 W
TSTG Storage Temperature Range 65 to +150
Operating
Temperature		 Commercial Temperature
Range		 0 to +70
Operating
Temperature		 Industrial Temperature
Range		 -40 to +85



Description

    The IDT23S05E is a high-speed phase-lock loop (PLL) clock buffer,designed to address high-speed clock distribution applications. The zero delay is achieved  by aligning the phase between the incoming clock and the output clock, operable within the range of 10 to 200MHz.

    The IDT23S05E is an 8-pin version of the IDT23S09E. IDT23S05E accepts one reference input, and drives out five low skew clocks. The -1H version of this device operates up to 200MHz frequency and has a higher drive than the -1 device. All parts have on-chip PLLs which lock to an input clock on the REF pin. The PLL feedback is on-chip and is obtained from the CLKOUT pad. In the absence of an input clock, the IDT23S05E enters power down. In this mode, the device will draw less than 12µA for Commercial Temperature range and less than 25µA for Industrial temperature range,   the outputs are tri-stated, and the PLL is not running, resulting in a significant reduction of power.

    The IDT23S05E is characterized for both Industrial and Commercial operation.
