Features: • Clock Distribution• 10MHz to 133MHz operating frequency• Distributes one clock input to one bank of five outputs• Output Skew < 250ps• No external RC network required• Operates at 2.5V VDD• Available in SOIC packageApplication• SDRAM...
IDT2305NZT: Features: • Clock Distribution• 10MHz to 133MHz operating frequency• Distributes one clock input to one bank of five outputs• Output Skew < 250ps• No external RC net...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Symbol | Rating | Max. | Unit |
VDD | Supply Voltage Range | 0.5 to +4.6 | V |
VI (2) | Input Voltage Range (REF) | 0.5 to +5.5 | V |
VI | Input Voltage Range(except REF) | 0.5 toVDD+0.5 | V |
IIK (VI < 0) | Input Clamp Current | 50 | mA |
IO (VO = 0 to VDD) | Continuous Output Current | ±50 | mA |
VDD or GND | Continuous Current | ±100 | mA |
TA = 55°C(in still air)(3) | Maximum Power Dissipation | 0.7 | W |
TSTG | Storage Temperature Range | 65 to +150 | ° C |
OperatingTemperature | Commercial Temperature Range | 0 to +70 | ° C |
NOTES:
1. Stresses greater than those listed under ABSOLUTE MAXIMUM RATINGS may cause permanent damage to the device. This is a stress rating only and functional operation of the device at these or any other conditions above those indicated in the operational sections of this specification is not implied. Exposure to absolute maximum rating conditions for extended periods may affect reliability.
2. The input and output negative-voltage ratings may be exceeded if the input and output clamp-current ratings are observed.
3. The maximum package power dissipation is calculated using a junction temperature of 150°C and a board trace length of 750 mils.

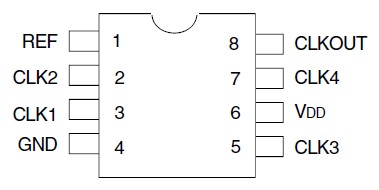

The IDT2305NZT is a high-speed clock buffer, designed to address high-speed clock distribution applications. IDT2305NZT accepts one reference input, and drives out five low skew clocks.
