Product Details

Description



Features:

• Supports frame readout system
• High horizontal and vertical resolution
• Supports high frame rate readout mode : 30 frames/s, AF mode : 60 frames/s, 50 frames/s
• Square pixel
• Horizontal drive frequency: 24.3MHz
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• R, G, B primary color mosaic filters on chip
• High sensitivity, low dark current
• Continuous variable-speed shutter
• Excellent anti-blooming characteristics
• 18-pin high-precision plastic package


Pinout

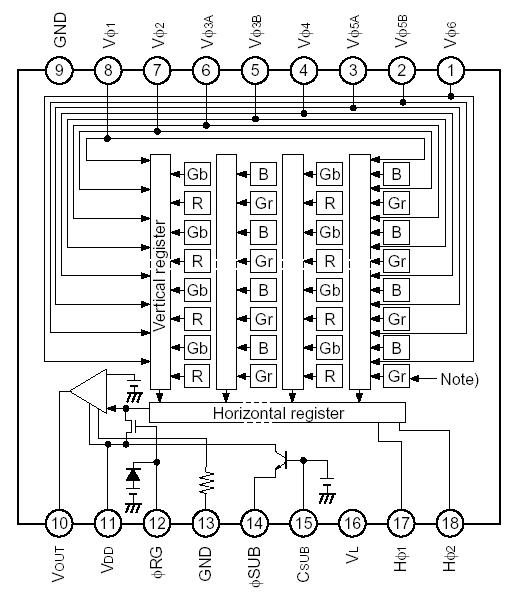

Connection Diagram


Specifications

Item Ratings Unit Remarks
Against SUB VDD, VOUT, RG SUB 40 to +12 V
VDD, VOUT, RG SUB 50 to +15 V
VDD, VOUT, RG SUB 50 to +0.3 V
H1, H2, GND SUB 40 to +0.3 V
CSUB SUB 25 to V
Against GND VDD, VOUT, RG, CSUB GND 0.3 to +22 V
V1, V2, V3A, V3B, V4, V5A, V5B, V6 GND 10 to +18 V
H1, H2 GND 10 to +6.5 V
Against VL V1, V3A, V3B, V5A, V5B VL 0.3 to +28 V
V2, V4, V6, H1, H2, GND VL 0.3 to +15 V
Between input clock pins Voltage difference between vertical clock input pins to +15 V ∗1
H1 H2 6.5 to +6.5 V
H1, H2 V6 10 to +16 V
Storage temperature 30 to +80 °C
Guaranteed temperature of performance 10 to +60 °C
Operating temperature 10 to +75 °C



Description

The ICX432DQF is a diagonal 6.67mm (Type 1/2.7) interline CCD solid-state image sensor with a square pixel array and 3.24M effective pixels. Adoption of a 3-field readout system ensures small size and high performance. This chip features an electronic shutter with variable charge-storage time.

R, G, B primary color mosaic filters are used as the color filters, and at the same time high sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology.

This chip of the ICX432DQF is suitable for applications such as electronic still cameras, etc.
