Features:

• High sensitivity (+6.0dB compared with the ICX038DNA)
• Low smear (5.0dB compared with the ICX038DNA)
• High D range (+2.0dB compared with the ICX038DNA)
• High S/N
• High resolution and low dark current
• Excellent antiblooming characteristics
• Ye, Cy, Mg, and G complementary color mosaic filters on chip
• Continuous variable-speed shutter
• Substrate bias:          Adjustment free (external adjustment also possible with 6 to 14V)
• Reset gate pulse:      5Vp-p adjustment free (drive also possible with 0 to 9V)
• Horizontal register:   5V drive


Pinout

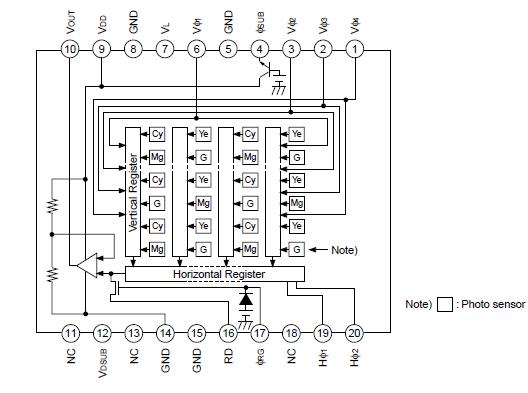

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Substrate clock SUB GND 0.3 to +50 V
Supply voltage VDD, VRD, VDSUB, VOUT, VSS GND 0.3 to +18 V
VDD, VRD, VDSUB, VOUT, VSS SUB 55 to +10 V
Clock input voltage V1, V2, V3, V4 GND 15 to +20 V
V1, V2, V3, V4 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17 to +17 V
RG, VGG GND 10 to +15 V
RG, VGG SUB 55 to +10 V
VL SUB 65 to +0.3 V
Pins other than GND and SUB VL 0.3 to +30 v
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1  +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX418AKL is an interline CCD solid-state image sensor suitable for NTSC color video cameras with a diagonal 8mm (Type 1/2) system. Compared with the current product ICX038DNA, basic characteristics such as sensitivity, smear, dynamic range and S/N are improved drastically.

This chip of the ICX418AKL features a field period readout system and an electronic shutter with variable charge-storage time. This chip is compatible with the pins of the ICX038DNA and has the same drive conditions.
