ICX414AL

Features: • Progressive scan allows individual readout of the image signals from all pixels.• High vertical resolution (480 TV-lines) still images without a mechanical shutter• Square pixel• Supports VGA format• Horizontal drive frequency: 24.54MHz (Max.)• No vo...

product image

ICX414AL Picture
See larger image
SeekIC No. : 004371515 Detail

ICX414AL: Features: • Progressive scan allows individual readout of the image signals from all pixels.• High vertical resolution (480 TV-lines) still images without a mechanical shutter• Squ...

ICX414AL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX414AL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Progressive scan allows individual readout of the image signals from all pixels.
• High vertical resolution (480 TV-lines) still images without a mechanical shutter
• Square pixel
• Supports VGA format
• Horizontal drive frequency: 24.54MHz (Max.)
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• High resolution, high sensitivity, low dark current
• Continuous variable-speed shutter
• Low smear
• Excellent anti-blooming characteristics


Pinout

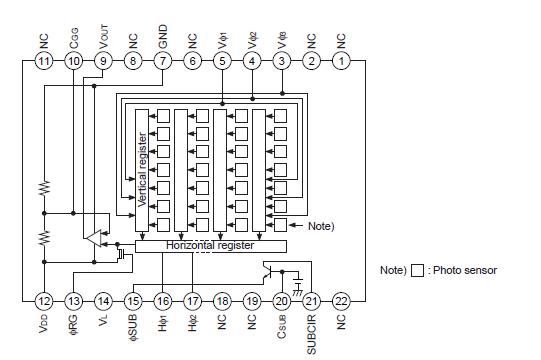

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Substrate clock SUB GND 0.3 to +55 V
Supply voltage VDD, VOUT, CGG, SUBCIR GND 0.3 to +18 V
VDD, VOUT, CGG, SUBCIR SUB 55 to +10 V
Clock input voltage V1, V2, V3 GND 15 to +20 V
V1, V2, V3 SUB

to +10

 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V3 16 to +16 V
H1, H2 GND 10 to +15 V
H1, H2 SUB 55 to +10 V
VL SUB 65 to +0.3 V
V2, V3 VL 0.3 to +27.5 v
RG GND 0.3 to +22.5 V
V1, H1, H2, GND VL 0.3 to +17.5 V
Storage temperature 30 to +80 °C
Performance guarantee temperature 10 to +60 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.
     +16V (Max.) is guaranteed for power-on and power-off.


Description

The ICX414AL is a diagonal 8mm (Type 1/2) interline CCD solid-state image sensor with a square pixel array suitable for EIA black-and-white cameras. Progressive scan allows all pixel's signals to be output independently within approximately 1/60 second. This chip features an electronic shutter with variable charge-storage time which makes it possible to realize full-frame still images without a mechanical shutter. Square pixel of the ICX414AL makes this device suitable for image input and processing applications. High sensitivity and low dark current are achieved through the adoption of the HAD (Hole-Accumulation Diode)
sensors.


This chip is suitable for applications such as FA and surveillance cameras.
