ICX412AQF

Features: • Supports frame readout• High horizontal and vertical resolution• Supports high frame rate readout mode: 30 frames/s, AF1 mode: 60 frames/s, 50 frames/s, AF2 mode: 120 frames/s, 100 frames/s• Square pixel• Horizontal drive frequency: 22.5MHz• No volta...

product image

ICX412AQF Picture
See larger image
SeekIC No. : 004371513 Detail

ICX412AQF: Features: • Supports frame readout• High horizontal and vertical resolution• Supports high frame rate readout mode: 30 frames/s, AF1 mode: 60 frames/s, 50 frames/s, AF2 mode: 120 f...

ICX412AQF Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX412AQF
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports frame readout
• High horizontal and vertical resolution
• Supports high frame rate readout mode: 30 frames/s,
   AF1 mode: 60 frames/s, 50 frames/s,
   AF2 mode: 120 frames/s, 100 frames/s
• Square pixel
• Horizontal drive frequency: 22.5MHz
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• R, G, B primary color mosaic filters on chip
• High sensitivity, low dark current
• Continuous variable-speed shutter
• Excellent anti-blooming characteristics
• Exit pupil distance recommended range 20 to 100mm
• 20-pin high-precision plastic package


Pinout

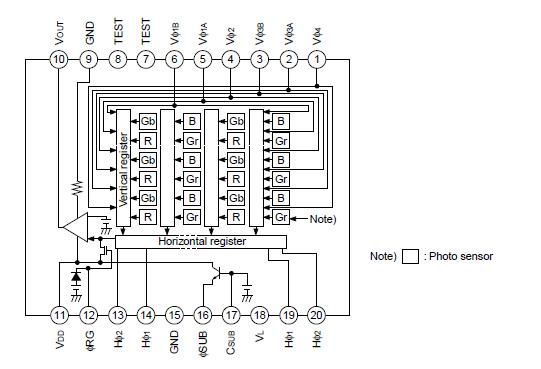

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Against SUB VDD, VOUT, RG SUB 40 to +12 V
V1A, V1B, V3A, V3B SUB 50 to +15 V
V2, V4, VL SUB 50 to +0.3 V
H1, H2, GND SUB 40 to +0.3 V
CSUB SUB 25 to V
Against GND VDD, VOUT, RG, CSUB GND 0.3 to +22 V
V1A, V1B, V2, V3A, V3B, V4 GND 10 to +18 V
H1, H2 GND 10 to +6.5 V
Against VL V1A, V1B, V3A, V3B VL 0.3 to +28 V
V2, V4, H1, H2, GND VL 0.3 to +15 V
Between input clock
pins		 Voltage difference between vertical clock input pins to +15 V *1
H1 H2 6.5 to +6.5 V
H1, H2 V4 10 to +16 V
Storage temperature 30 to +80 °C
Guaranteed temperature of performance 10 to +60 °C
Operating temperature 10 to +75 °C
*1  +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.
      +16V (Max.) is guaranteed for turning on or off power supply.


Description

The ICX412AQF is a diagonal 8.933mm (Type 1/1.8) interline CCD solid-state image sensor with a square pixel array and 3.24M effective pixels. Sensitivity, saturation signal, smear and frame rate have been improved compared to the ICX252AQF.

This chip features an electronic shutter with variable charge-storage time.

R, G, B primary color mosaic filters are used as the color filters, and at the same time high sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology.

This chip of the ICX412AQF is suitable for applications such as
electronic still cameras, etc.
