Product Details

Description



Features:

• High sensitivity (+6dB compared with the ICX058CK)
• Low smear (15dB compared with the ICX058CK)
• High D range (+4dB compared with the ICX058CK)
• High S/N
• High resolution and low dark current
• Excellent antiblooming characteristics
• Ye, Cy, Mg, and G complementary color mosaic filters on chip
• Continuous variable-speed shutter
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• Reset gate:                  5V drive
• Horizontal register:      5V drive

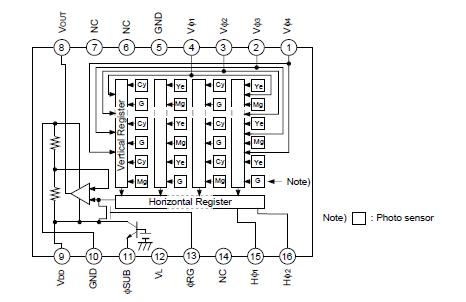

Pinout

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Against SUB VDD, VOUT,RG SUB 40 to +8 V
V1, V3 SUB 50 to +15 V
V2, V4, VL SUB 50 to +0.3 V
H1, H2, GND SUB 40 to +0.3 V
Against GND VDD, VOUT,RG GND 0.3 to +20 V
V1, V2, V3, V4 GND 10 to +18 V
H1, H2 GND 10 to +6 V
Against VL V1, V3 VL 0.3 to +28 V
V2, V4, H1, H2, GND VL 0.3 to +15 V
Between input clock
pins		 Voltage difference between vertical clock input pins to +15 V *1
H1 H2 6 to +6 V
H1, H2 V4 14 to +14 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX408AK is an interline CCD solid-state image sensor suitable for NTSC color video cameras with a diagonal 6mm (Type 1/3) system. Compared with the conventional product ICX058CK, basic characteristics such as sensitivity, smear, dynamic range and S/N are improved drastically.

This chip features a field period readout system and an electronic shutter with variable charge-storage time.

This chip of the ICX408AK is suitable for applications such as surveillance cameras, automotive cameras, etc.
