Features:

• Supports frame readout
• High horizontal and vertical resolution
• Supports high frame rate readout mode: 30 frames/s
• Square pixel
• Horizontal drive frequency: 18MHz
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• Ye, Cy, Mg, G complementary color mosaic filters on chip
• High sensitivity, low smear
• Continuous variable-speed shutter
• Low dark current, excellent anti-blooming characteristics
• 16-pin high-precision plastic package (top/bottom dual surface reference possible)


Pinout

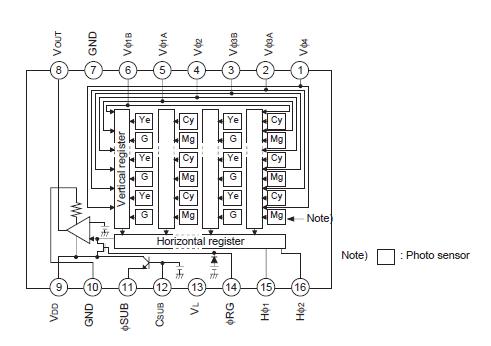

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Against SUB VDD, VOUT, RG SUB 40 to +12 V
V1A, V1B, V3A, V3B SUB 50 to +15 V
V2, V4, VL SUB 50 to +0.3 V
H1, H2, GND SUB 40 to +0.3 V
CSUB SUB 25 to V
Against GND VDD, VOUT, RG, CSUB GND 0.3 to +22 V
V1A, V1B, V2, V3A, V3B, V4 GND 10 to +18 V
H1, H2 GND 10 to +6.5 V
Against VL V1A, V1B, V3A, V3B VL 0.3 to +28 V
V2, V4, H1, H2, GND VL 0.3 to +15 V
Between input clock
pins		 Voltage difference between vertical clock input pins to +15 V *2
H1 H2 6.5 to +6.5 V
H1, H2 V4 10to +16 V
Storage temperature 30 to +80 °C
Guaranteed temperature of performance 10 to +60 °C
Operating temperature 10 to +75 °C
*2   +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.
       +16V (Max.) is guaranteed for turning on or off power supply.


Description

The ICX284AK is a diagonal 6.64mm (Type 1/2.7) interline CCD solid-state image sensor with a square pixel array and 2.02M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/7.5 second. Also, the adoption of high frame rate readout mode supports 30 frames per second which is four times the speed in frame readout mode. This chip features an electronic shutter with variable charge-storage time. Adoption of a design specially suited for frame readout ensures a saturation signal level equivalent to when using field readout. Ye, Cy, Mg, G complementary color mosaic filters are used as the color filters, and at the same time high sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology.

This chip of the ICX284AK is suitable for applications such as electronic still cameras, PC input cameras, etc.
