ICX282AQ

Features: • High horizontal and vertical resolution • Supports 10 types of readout modes Frame readout mode, 2×speed mode(1), 2×speed mode(2), 8×speed mode, center scan mode(1),center scan mode(2),center scan mode(3),center scan mode(4),AF mode(1),AF mode(2)• Square pixel• ...

product image

ICX282AQ Picture
See larger image
SeekIC No. : 004371499 Detail

ICX282AQ: Features: • High horizontal and vertical resolution • Supports 10 types of readout modes Frame readout mode, 2×speed mode(1), 2×speed mode(2), 8×speed mode, center scan mode(1),center sc...

ICX282AQ Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX282AQ
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High horizontal and vertical resolution
• Supports 10 types of readout modes Frame readout mode, 2×speed mode(1), 2×speed mode(2), 8×speed mode, center scan mode(1),center scan mode(2),center scan mode(3),center scan mode(4),AF mode(1),AF mode(2)
• Square pixel
• Horizontal drive frequency: 22.5MHz
• No voltage adjustments (reset gate and substrate bias are not adjusted.)
• R, G, B primary color mosaic filters on chip
• High sensitivity, low dark current, excellent anti-blooming characteristics
• Continuous variable-speed shutter
• Horizontal register, reset gate: 3.3V drive
• 24-pin high-precision plastic package


Pinout

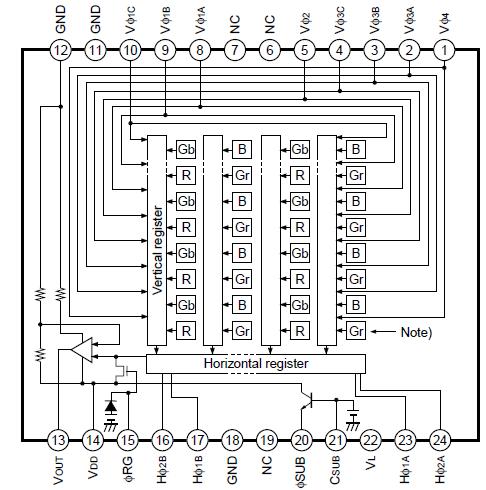

Connection Diagram


Specifications

Item Ratings Unit Remarks
Against SUB VDD, VOUT, RG SUB 40 to +12 V
V1, V3 SUB ( =AtoC) 50 to +15 V
V2, V4, VL SUB 50 to +0.3 V
H1, H2, GND SUB ( = A,B) 40 to +0.3 V
CSUB SUB 25 to V
Against GND VDD, VOUT, RG, CSUB GND 0.3 to +22 V
V1, V2, V3, V4 GND (=AtoC) 10 to +18 V
H1, H2 GND ( = A, B) 10 to +6.5 V
Against VL V1, V3 VL ( = A to C) 0.3 to +28 V
V2, V4, H1,H2,GNDVL(=A, B) 0.3 to +15 V
Between input
clock pins		 Voltage difference between vertical clock input pins to +15 V *1
H1H2( = A,B) 6.5 to +6.5 V
H1, H2V4 (=A,B) 10 to +16 V
Storage temperature 30 to +80
Guaranteed temperature of performance 10 to +60
Operating temperature 10 to +75
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.
+16V (Max.) is guaranteed for turning on or off power supply


Description

The ICX282AQ is a diagonal 11mm (Type 2/3) interline CCD solid-state image sensor with a square pixel array and 5.07M effective pixels. Frame readout allows all pixels' signals to be output independently within approximately 1/3.75 second. In addition, output is possible using various addition and pulse elimination methods. This chip features an electronic shutter with variable charge-storage time. Adoption of a design specially suited for frame readout ensures a saturation signal level equivalent to that when using field readout.High resolution and high color reproductively are achieved through the use of R, G, B primary color mosaic filters as the color filters. Further, high sensitivity and low dark current are achieved through the adoption of Super HAD CCD technology.

This chip of the ICX282AQ is suitable for applications such as electronic still cameras, PC input cameras, etc.
