Product Details

Description



Features:

• High sensitivity (+5dB compared with the ICX209AK)
• Low smear (20dB compared with the ICX209AK)
• High D range (+2dB compared with the ICX209AK)
• Horizontal register: 3.3 to 5.0V drive
• Reset gate: 3.3 to 5.0V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• High resolution, low smear and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Recommended range of exit pupil distance: 20 to 100mm
• Ye, Cy, Mg, and G complementary color mosaic filters on chip


Pinout

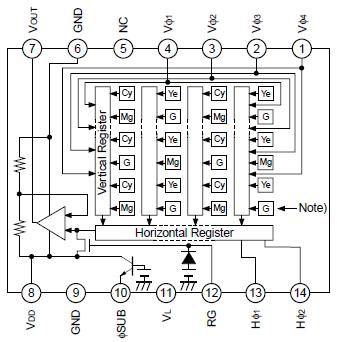

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Against SUB VDD, VOUT, RG SUB
40 to +8
V
V1, V3 SUB
50 to +15
V
V2, V4, VL SUB
50to +0.3
V
H1, H2, GND SUB
40to +0.3
V
Against GND VDD, VOUT, RG GND
0.3 to +18
V
V1, V2, V3, V4 GND
10 to +18
V
H1, H2 GND
10to +6
V
Against VL V1, V3 VL
0.3 to +28
V
V2, V4, H1, H2, GND VL
0.3 to +15
V

Between input clock pins

 Voltage difference between vertical clock input pins
to +15
V
*1
H1 H2
5 to +5
V
H1, H2 V4
13 to +13
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX279AK is an interline CCD solid-state image sensor suitable for PAL color video cameras with a diagonal 4.5mm (Type 1/4) system. Compared with the current product ICX209AK, basic characteristics such as sensitivity, smear and dynamic range are improved drastically through the adoption of EXview HAD CCDTM technology.

This chip features a field period readout system and an electronic shutter with variable charge-storage time.

The package is a 10mm-square 14-pin DIP (Plastic).

EXview HAD CCDTM of the ICX279AK has different spectral characteristics from the current CCD
