ICX278AK

Features: • High sensitivity (+5dB compared with the ICX208AK)• Low smear (20dB compared with the ICX208AK)• High D range (+2dB compared with the ICX208AK)• Horizontal register: 3.3 to 5.0V drive• Reset gate: 3.3 to 5.0V drive• No voltage adjustment (Reset gate ...

product image

ICX278AK Picture
See larger image
SeekIC No. : 004371493 Detail

ICX278AK: Features: • High sensitivity (+5dB compared with the ICX208AK)• Low smear (20dB compared with the ICX208AK)• High D range (+2dB compared with the ICX208AK)• Horizontal regist...

ICX278AK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX278AK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High sensitivity (+5dB compared with the ICX208AK)
• Low smear (20dB compared with the ICX208AK)
• High D range (+2dB compared with the ICX208AK)
• Horizontal register: 3.3 to 5.0V drive
• Reset gate: 3.3 to 5.0V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• High resolution, low smear and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Recommended range of exit pupil distance: 20 to 100mm
• Ye, Cy, Mg, and G complementary color mosaic filters on chip


Pinout

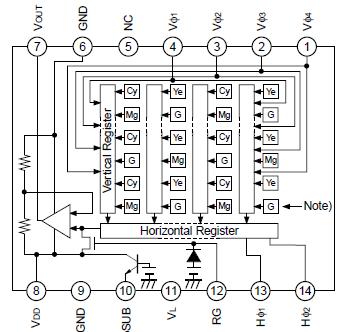

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Against SUB VDD, VOUT, RG SUB
40 to +8
V
V1, V3 SUB
50 to +15
V
V2, V4, VL SUB
50to +0.3
V
H1, H2, GND SUB
40to +0.3
V
Against GND VDD, VOUT, RG GND
0.3 to +18
V
V1, V2, V3, V4 GND
10 to +18
V
H1, H2 GND
10to +6
V
Against VL V1, V3 VL
0.3 to +28
V
V2, V4, H1, H2, GND VL
0.3 to +15
V

Between input clock pins

 Voltage difference between vertical clock input pins
to +15
V
*1
H1 H2
5 to +5
V
H1, H2 V4
13 to +13
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX278AK is an interline CCD solid-state image sensor suitable for NTSC color video cameras with a diagonal 4.5mm (Type 1/4) system. Compared with the current product ICX208AK, basic characteristics such as sensitivity, smear and dynamic range are improved drastically through the adoption of EXview HAD CCDTM technology.

This chip features a field period readout system and an electronic shutter with variable charge-storage time.

The package is a 10mm-square 14-pin DIP (Plastic).

EXview HAD CCDTM of the ICX278AK has different spectral characteristics from the current CCD.
