ICX255AL

Features: • Sensitivity in near infrared light region (+8dB compared with the ICX055BL,= 945nm)• High sensitivity (+6dB compared with the ICX055BL, no IR cut filter)• Low smear (20dB compared with the ICX055BL)• High D range (+3dB compared with the ICX055BL)• High S/N...

product image

ICX255AL Picture
See larger image
SeekIC No. : 004371483 Detail

ICX255AL: Features: • Sensitivity in near infrared light region (+8dB compared with the ICX055BL,= 945nm)• High sensitivity (+6dB compared with the ICX055BL, no IR cut filter)• Low smear (20...

ICX255AL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX255AL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Sensitivity in near infrared light region (+8dB compared with the ICX055BL,= 945nm)
• High sensitivity (+6dB compared with the ICX055BL, no IR cut filter)
• Low smear (20dB compared with the ICX055BL)
• High D range (+3dB compared with the ICX055BL)
• High S/N
• Low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• Reset gate: 5V drive
• Horizontal register: 5V drive

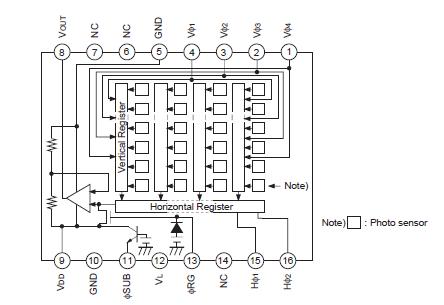

Pinout

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Against SUB VDD, VOUT,RG SUB 40 to +8 V
V1, V3 SUB 50 to +15 V
V2, V4, VL SUB 50 to +0.3 V
H1, H2, GND SUB 40 to +0.3 V
Against GND VDD, VOUT, RG GND 0.3 to +20 V
V1, V2, V3, V4 GND 10 to +18 V
H1, H2 GND 10 to +6 V
Against VL V1, V3 VL 0.3 to +28 V
V2, V4, H1, H2, GND VL 0.3 to +15 V
Between input clock
pins		 Voltage difference between vertical clock input pins to +15 V *1
H1 H2 6 to +6 V
H1, H2 V4 14 to +14 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX255AL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras with a diagonal 6mm (Type 1/3) system. Compared with the current product ICX055BL, basic characteristics such as sensitivity, smear, dynamic range and S/N are improved drastically from visible light region to near infrared light region through the adoption of EXview HAD CCDTM technology.

This chip of the ICX255AL features a field period readout system and an electronic shutter with variable charge-storage time.
