ICX255AK

Features: • High sensitivity (+6dB compared with the ICX055BK)• Low smear (20dB compared with the ICX055BK)• High D range (+3dB compared with the ICX055BK)• High S/N• Low dark current• Excellent antiblooming characteristics• Ye, Cy, Mg, and G complementary...

product image

ICX255AK Picture
See larger image
SeekIC No. : 004371482 Detail

ICX255AK: Features: • High sensitivity (+6dB compared with the ICX055BK)• Low smear (20dB compared with the ICX055BK)• High D range (+3dB compared with the ICX055BK)• High S/N• L...

ICX255AK Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX255AK
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/5/28

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High sensitivity (+6dB compared with the ICX055BK)
• Low smear (20dB compared with the ICX055BK)
• High D range (+3dB compared with the ICX055BK)
• High S/N
• Low dark current
• Excellent antiblooming characteristics
• Ye, Cy, Mg, and G complementary color mosaic filters on chip
• Continuous variable-speed shutter
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• Reset gate:                5V drive
• Horizontal register:    5V drive


Pinout

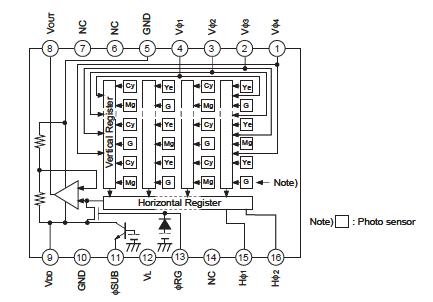

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Against SUB VDD, VOUT, RG SUB 40 to +10 V
V1, V3 SUB 50 to +15 V
V2, V4, VL SUB 50 to +0.3 V
H1, H2, GND SUB 40 to +0.3 V
CSUB SUB 25 to V
Against GND

VDD, VOUT, RG, CSUB GND

 0.3 to +18 V
V1, V2, V3, V4 GND 10 to +18 V
H1, H2 GND 10 to +5 V
Against VL V1, V3 VL 0.3 to +28 V
V2, V4, H1, H2, GND VL 0.3 to +15 V
Between input clock
pins		 Voltage difference between vertical clock input pins to +15 V *1
H1 H2 5 to +5 V
H1, H2 V4 13 to +13 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX255AK is an interline CCD solid-state image sensor suitable for PAL color video cameras with a diagonal 6mm (Type1/3) system. Compared with the current product ICX055BK, basic characteristics such as sensitivity, smear, dynamic range and S/N are improved drastically through the adoption of EXview HAD CCDTM technology.

This chip of the ICX255AK features a field period readout system and an electronic shutter with variable charge-storage time.

EXview HAD CCDTM has different spectral characteristics
from the current CCD
