ICX249AL

Features: • Sensitivity in the near infrared light area (+12dB compared with the ICX039DLA, l = 945nm)• High sensitivity (+9dB compared with the ICX039DLA, without IR cut filter)• Low smear (15dB compared with the ICX039DLA)• High D range (+2dB compared with the ICX039DLA)&...

product image

ICX249AL Picture
See larger image
SeekIC No. : 004371476 Detail

ICX249AL: Features: • Sensitivity in the near infrared light area (+12dB compared with the ICX039DLA, l = 945nm)• High sensitivity (+9dB compared with the ICX039DLA, without IR cut filter)• ...

ICX249AL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX249AL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/6/10

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Sensitivity in the near infrared light area
   (+12dB compared with the ICX039DLA, l = 945nm)
• High sensitivity
   (+9dB compared with the ICX039DLA, without IR cut filter)
• Low smear (15dB compared with the ICX039DLA)
• High D range (+2dB compared with the ICX039DLA)
• High S/N
• High resolution and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Substrate bias:         Adjustment free (external adjustment also possible with 6 to 14V)
• Reset gate pulse:     5Vp-p adjustment free (drive also possible with 0 to 9V)
• Horizontal register:   5V drive


Pinout

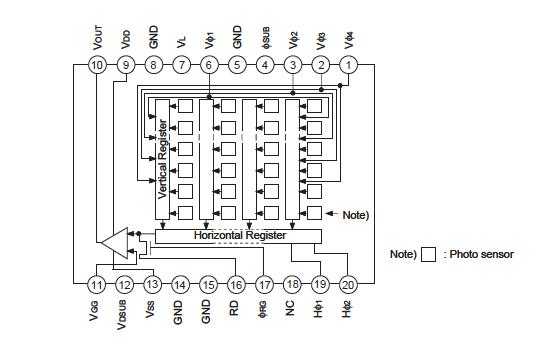

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Substrate clock SUB GND 0.3 to +50 V
Supply voltage VDD, VRD, VDSUB, VOUT, VSS GND 0.3 to +18 V
VDD, VRD, VDSUB, VOUT, VSS SUB 55 to +10 V
Clock input voltage V1, V2, V3, V4 GND 15 to +20 V
V1, V2, V3, V4 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17 to +17 V
RG, VGG GND 10 to +15 V
RG, VGG SUB 55 to +10 V
VL SUB 65 to +0.3 V
Pins other than GND and SUB VL 0.3 to +30 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX249AL is an interline CCD solid-state image sensor suitable for CCIR black-and-white video cameras with a diagonal 8mm (Type 1/2) system. Sensitivity, smear, D-range, S/N and other characteristics from visible light area to near infrared light area, have been greatly improved compared with the ICX039DLA through the adoption of EXview HAD CCDTM technology.

This chip of the ICX249AL features a field period readout system and an electronic shutter with variable charge-storage time.

This chip is compatible with and can replace the ICX039DLA.
