Features:

• High sensitivity (+4.0dB compared with the ICX038DNA)
• Low smear (6dB compared with the ICX038DNA)
• High D range (+2.0dB compared with the ICX038DNA)
• High S/N
• High resolution and low dark current
• Excellent antiblooming characteristics
• Ye, Cy, Mg, and G complementary color mosaic filters on chip
• Continuous variable-speed shutter
• Substrate bias:                  Adjustment free (external adjustment also possible with 6 to 14V)
• Reset gate pulse:              5Vp-p adjustment free (drive also possible with 0 to 9V)
• Horizontal register:            5V drive


Pinout

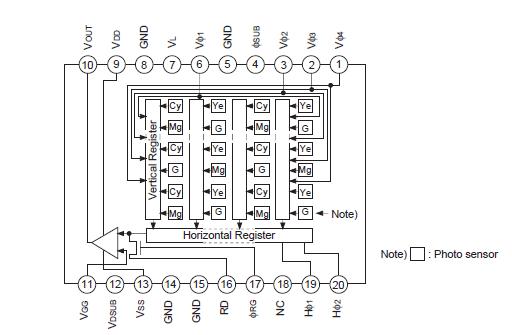

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Substrate clock SUB GND 0.3 to +50 V
Supply voltage VDD, VRD, VDSUB, VOUT, VSS GND 0.3 to +18 V
VDD, VRD, VDSUB, VOUT, VSS SUB 55 to +10 V
Clock input voltage V1, V2, V3, V4 GND 15 to +20 V
V1, V2, V3, V4 SUB to +10 V
Voltage difference between vertical clock input pins to +15 V *1
Voltage difference between horizontal clock input pins to +17 V
H1, H2 V4 17 to +17 V
RG, VGG GND 10 to +15 V
RG, VGG SUB 55 to +10 V
VL SUB 65 to +0.3 V
Pins other than GND and SUB VL 0.3 to +30 v
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +27V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX248AK is an interline CCD solid-state image sensor suitable for NTSC color video cameras with a diagonal 8mm (Type 1/2) system. Compared with the current product ICX038DNA, basic characteristics such as sensitivity, smear, dynamic range and S/N are improved drastically through the adoption of EXview HAD CCDTM technology.

This chip of the ICX248AK features a field period readout system and an electronic shutter with variable charge-storage time. This chip is compatible with the pins of the ICX038DNA and has the same drive conditions.

EXview HAD CCDTM of the ICX248AK has different spectral characteristics from the current CCD.
