Features:

• Low smear (100dB Typ. at F5.6)
• Low power consumption (38% compared with ICX209AK)
• High sensitivity (+3dB at F1.2 compared with ICX209AK)
• High saturation signal
• Supply voltage             12V
• Horizontal register:      3.3V drive
• Reset gate:                  3.3V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• High resolution,low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Recommended range of exit pupil distance: 20 to 100mm
• Ye, Cy, Mg, and G complementary color mosaic filters on chip


Pinout

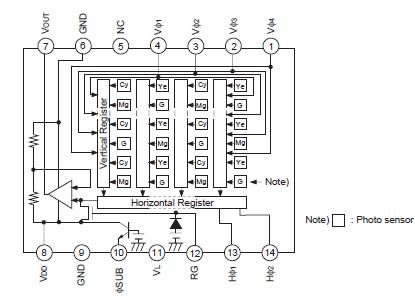

Connection Diagram


Specifications

Item

 Ratings Unit Remarks
Against SUB VDD, VOUT, RG SUB 32 to +12 V
V1, V3 SUB 40 to +15 V
V2, V4, VL SUB 40 to +0.3 V
H1, H2, GND SUB 32 to +0.3 V
Against GND VDD, VOUT, RG GND 0.3 to +17 V
V1, V2, V3, V4 GND 7 to +14 V
H1, H2 GND 7 to +4.2 V
Against VL V1, V3 VL 0.3 to +21 V
V2, V4, H1, H2, GND VL 0.3 to +12 V
Between input clock
pins		 Voltage difference between vertical clock input pins to +12 V *1
H1 H2 5 to +5 V
H1, H2 V4 12 to +12 V
Storage temperature 30 to +80 °C
Operating temperature 10 to +60 °C
*1 +21V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX229AK is an interline CCD solid-state image sensor suitable for PAL color video cameras. Compared with the current product ICX209AK, smear charactristics are improved drastically and power consumption is reduced. High resolution is achieved through the of Ye, Cy, Mg, and G complementary color mosaic filters. High sensitivity and high saturation signal are achieved by Super HAD CCD technology.

This chip of the ICX229AK features a field period readout system and an electronic shutter with variable charge-storage time.

The package is a 10mm-square 14-pin DIP (Plastic).
