ICX228AL

Features: • Low smear (100dB Typ. at F5.6)• Low power consumption (38% compared with ICX208AL)• High sensitivity (+3dB at F1.2 compared with ICX208AL)• High saturation signal• Supply voltage 12V• Horizontal register: 3.3V drive• Reset gate: 3.3V drive̶...

product image

ICX228AL Picture
See larger image
SeekIC No. : 004371468 Detail

ICX228AL: Features: • Low smear (100dB Typ. at F5.6)• Low power consumption (38% compared with ICX208AL)• High sensitivity (+3dB at F1.2 compared with ICX208AL)• High saturation signal...

ICX228AL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX228AL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2025/2/15

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low smear (100dB Typ. at F5.6)
• Low power consumption (38% compared with ICX208AL)
• High sensitivity (+3dB at F1.2 compared with ICX208AL)
• High saturation signal
• Supply voltage 12V
• Horizontal register: 3.3V drive
• Reset gate: 3.3V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• High resolution,low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Recommended range of exit pupil distance: 20 to 100mm


Pinout

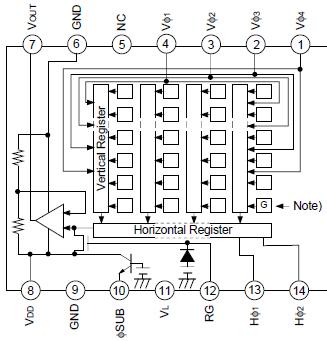

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Against SUB VDD, VOUT, RG SUB
32 to +12
V
V1, V3 SUB
40 to +15
V
V2, V4, VL SUB
40to +0.3
V
H1, H2, GND SUB
32to +0.3
V
Against GND VDD, VOUT, RG GND
0.3 to +17
V
V1, V2, V3, V4 GND
7 to +14
V
H1, H2 GND
7to +4.2
V
Against VL V1, V3 VL
0.3 to +21
V
V2, V4, H1, H2, GND VL
0.3 to +12
V

Between input clock pins

 Voltage difference between vertical clock input pins
to +12
V
*1
H1 H2
5 to +5
V
H1, H2 V4
12 to +12
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*1 +21V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX228AL is an interline CCD solid-state image sensor suitable for EIA B/W video cameras.Compared with the current product ICX208AL, smear charactristics are improved drastically and power consumption is reduced. High sensitivity and high saturation signal are achieved by Super HAD CCD technology.

This chip of the ICX228AL features a field period readout system and an electronic shutter with variable charge-storage time.

The package is a 10mm-square 14-pin DIP (Plastic).
