ICX207AL

Features: • High sensitivity (+6dB compared with ICX087AL)• High saturation signal (+2.2dB compared with ICX087AL)• Horizontal register: 3.3 to 5.0V drive• Reset gate: 3.3 to 5.0V drive• No voltage adjustment (Reset gate and substrate bias are not adjusted.)• Lo...

product image

ICX207AL Picture
See larger image
SeekIC No. : 004371452 Detail

ICX207AL: Features: • High sensitivity (+6dB compared with ICX087AL)• High saturation signal (+2.2dB compared with ICX087AL)• Horizontal register: 3.3 to 5.0V drive• Reset gate: 3.3 to...

ICX207AL Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICX207AL
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• High sensitivity (+6dB compared with ICX087AL)
• High saturation signal (+2.2dB compared with ICX087AL)
• Horizontal register: 3.3 to 5.0V drive
• Reset gate: 3.3 to 5.0V drive
• No voltage adjustment (Reset gate and substrate bias are not adjusted.)
• Low smear and low dark current
• Excellent antiblooming characteristics
• Continuous variable-speed shutter
• Recommended range of exit pupil distance: 20 to 100mm


Pinout

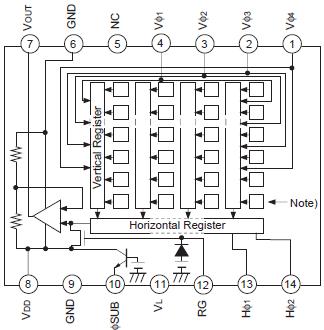

Connection Diagram


Specifications

Item
Ratings
Unit
Remarks
Against SUB VDD, VOUT, RGSUB
40 to +8
V
V1, V3 SUB
50 to +15
V
V2, V4, VL SUB
50 to +0.3
V
H1, H2, GND SUB
40 to +0.3
V
Against GND VDD, VOUT, RG GND
0.3 to +18
V
V1, V2, V3, V4 GND
10 to +18
V
H1, H2 GND
10 to +6
V
Against VL V1, V3 VL
0.3 to +28
V
V2, V4, H1, H2, GND VL
0.3 to +15
V
Between input
clock pins		 Voltage difference between vertical clock input pins
to +15
V
*1
H1H2
5 to +5
V
H1, H2V4
13 to +13
V
Storage temperature
30 to +80
Operating temperature
10 to +60
*1 +24V (Max.) when clock width < 10s, clock duty factor < 0.1%.


Description

The ICX207AL is an interline CCD solid-state image sensor suitable for CCIR B/W video cameras. Compared with the current product ICX087AL,sensitivity and saturation signal are improved drastically through the adoption of Super HAD CCD technology.

This chip of the ICX207AL features a field period readout system and an electronic shutter with variable charge-storage time.

The package is a 10mm-square 14-pin DIP (Plastic).
