ICS9DB108

Features: • Supports tight ppm accuracy clocks for Serial-ATA• Spread spectrum modulation tolerant, 0 to -0.5% down spread and +/- 0.25% center spread• Supports undriven differential output pair in PD# and SRC_STOP# for power management.Application·DB800 Intel Yellow Cover part w...

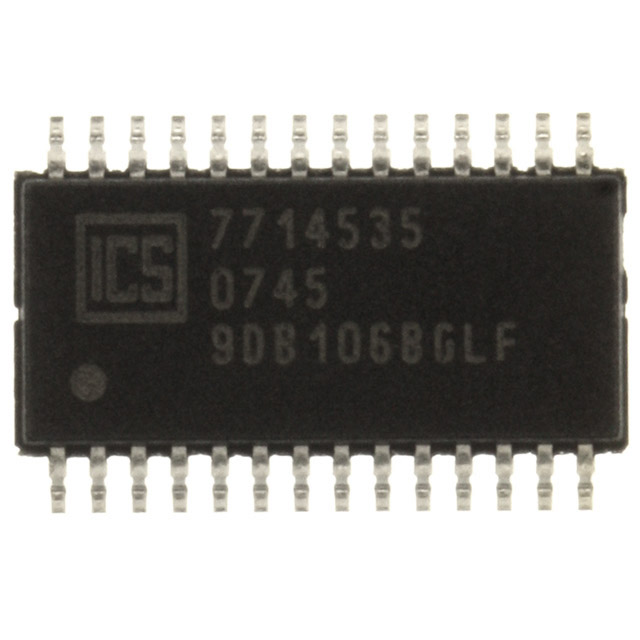

product image

ICS9DB108 Picture
See larger image
SeekIC No. : 004371352 Detail

ICS9DB108: Features: • Supports tight ppm accuracy clocks for Serial-ATA• Spread spectrum modulation tolerant, 0 to -0.5% down spread and +/- 0.25% center spread• Supports undriven differenti...

ICS9DB108 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS9DB108
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Supports tight ppm accuracy clocks for Serial-ATA
• Spread spectrum modulation tolerant, 0 to -0.5% down spread and +/- 0.25% center spread
• Supports undriven differential output pair in PD# and SRC_STOP# for power management.


Application

·DB800 Intel Yellow Cover part with PCI-Express support.

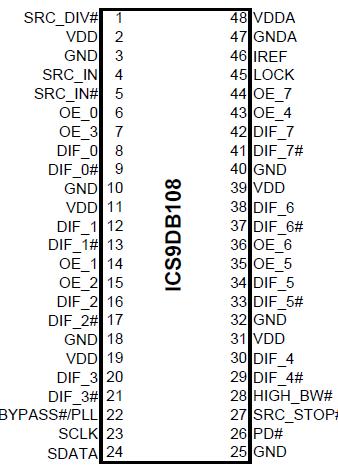

Pinout

Connection Diagram


Specifications

Symbol
 Parameter
Min
Max
Units
VDD_A
 3.3V Core Supply Voltage
4.6
V
VDD_In
 3.3V Logic Supply Voltage
4.6
V
VIL
 Input Low Voltage
GND-0.5
V
VIH
 Input High Voltage
VDD+0.5V
V
Ts
 Storage Temperature
-65
150
°C
Tambient
 Ambient Operating Temp
0
70
°C
Tcase
 Case Temperature
115
°C
ESD prot
 Input ESD protection
human body model
2000
V



Description

ICS9DB108 follows the Intel DB400 Differential Buffer Specification. This buffer provides four SRC clocks for PCI-Express, next generation I/O devices. ICS9DB108 is driven by a differential input pair from a CK409/CK410 main clock generator, such as the ICS952601 or ICS954101. ICS9DB108 can run at speeds up to 200MHz. It provides ouputs meeting tight cycle-to-cycle jitter (50ps) and output-to-output skew (50ps) requirements.
