ICS95V857C

Features: • Low skew, low jitter PLL clock driver• 1 to 10 differential clock distribution (SSTL_2)• Feedback pins for input to output synchronization• PD# for power management• Spread Spectrum-tolerant inputs• Auto PD when input signal removedApplication•...

product image

ICS95V857C Picture
See larger image
SeekIC No. : 004371339 Detail

ICS95V857C: Features: • Low skew, low jitter PLL clock driver• 1 to 10 differential clock distribution (SSTL_2)• Feedback pins for input to output synchronization• PD# for power manageme...

ICS95V857C Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS95V857C
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low skew, low jitter PLL clock driver
• 1 to 10 differential clock distribution (SSTL_2)
• Feedback pins for input to output synchronization
• PD# for power management
• Spread Spectrum-tolerant inputs
• Auto PD when input signal removed


Application

• DDR Memory Modules / Zero Delay Board Fan Out
• Provides complete DDR registered DIMM solution with ICSSSTVF16857, ICSSSTVF16859 or ICSSSTV32852

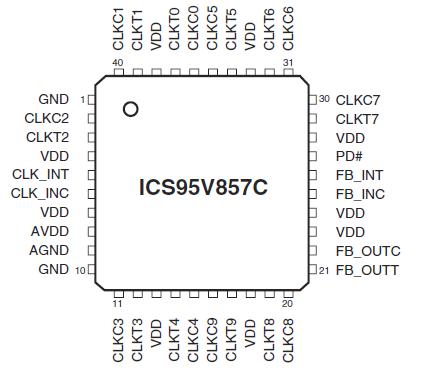

Pinout

Connection Diagram


Specifications

Supply Voltage (VDD & AVDD). . . . . . . . . ......................... . -0.5V to 4.6V
Logic Inputs . . . . . . . . . . . . . . . . . . . . . . . . . GND 0.5 V to VDD + 0.5 V
Ambient Operating Temperature . . . . . . . . .................. . 0°C to +85°C
Storage Temperature . . . . . . . . . . . . . . . . . . ...........65°C to +150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These
ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
