Product Details

Description



Features:

• Supports tight ppm accuracy clocks for Serial-ATA
• Supports spread spectrum modulation, 0 to -0.5% down spread and +/- 0.25% center spread
• Supports CPU clks up to 400MHz in test mode
• Uses external 14.318MHz crystal
• Supports undriven differential CPU, SRC pair in PD#for power management.


Application

CK409 48-pin part

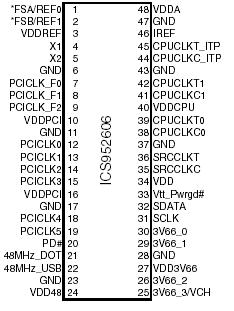

Pinout

Connection Diagram




Description

ICS952606 is a 48 pin clock chip following Intel CK409 Yellow Cover specification. This clock synthesizer provides a single chip solution for next generation P4 Intel processors and Intel chipsets. ICS952606 is driven with a 14.318MHz crystal. It generates CPU outputs up to 200MHz. It also provides a tight ppm accuracy output for Serial ATA support.
