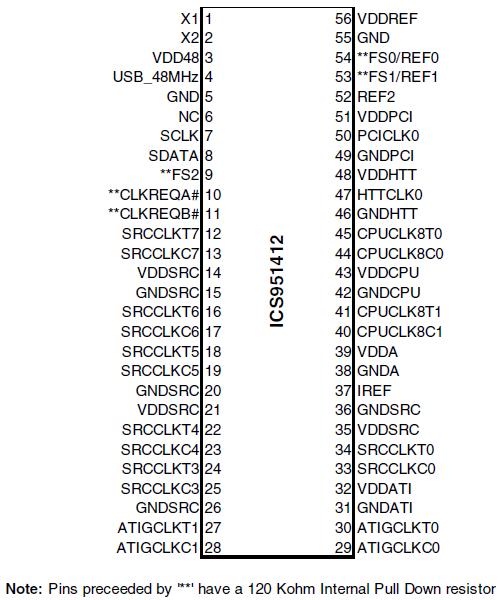

ICS951412

• 3 - 14.318 MHz REF clocks
• 1 - USB_48MHz USB clock
• 1 - HyperTransport 66 MHz clock seed
• 1 - PCI 33 MHz clock seed
• 2 - Pairs of AMD K8 clocks
• 6 - Pairs of SRC/PCI Express* clocks
• 2 - Pairs of ATIG (SRC/PCI Express) clocks

Supply Voltage . . . . . . . . . . . . . . . . . .  . .  . .  . .  . .  . .  . . . . . . . . . . 3.8V
Logic Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . GND 0.5 V to V_DD +3.8 V
Ambient Operating Temperature . . . . . . . .  . .  . .  . .  .  . . . . 0 to +70
Storage Temperature . . . . . . . . . . . . . . . .  . .  . .  . . . . . 65 to +150
ESD Protection  . . Input ESD protection usung human body model > 1KV

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
