ICS950908

Features: • 1 - Pair of differential CPU clocks @ 3.3V (CK408)/• 1 - Pair of differential open drain CPU clocks (K7)• 2 - Push pull CPUT_CS clocks @ 2.5V• 3 - AGP @ 3.3V• 7 - PCI @ 3.3V• 1 - 48MHz @ 3.3V fixed• 1 - 24_48MHz @ 3.3V• 2 - REF @ 3.3V, 14...

product image

ICS950908 Picture
See larger image
SeekIC No. : 004371317 Detail

ICS950908: Features: • 1 - Pair of differential CPU clocks @ 3.3V (CK408)/• 1 - Pair of differential open drain CPU clocks (K7)• 2 - Push pull CPUT_CS clocks @ 2.5V• 3 - AGP @ 3.3V̶...

ICS950908 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS950908
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1 - Pair of differential CPU clocks @ 3.3V (CK408)/
• 1 - Pair of differential open drain CPU clocks (K7)
• 2 - Push pull CPUT_CS clocks @ 2.5V
• 3 - AGP @ 3.3V
• 7 - PCI @ 3.3V
• 1 - 48MHz @ 3.3V fixed
• 1 - 24_48MHz @ 3.3V
• 2 - REF @ 3.3V, 14.318MHz
• Programmable output frequency.
• Programmable output divider ratios.
• Programmable output rise/fall time.
• Programmable output skew.
• Programmable spread percentage for EMI control.
• Watchdog timer technology to reset system if system malfunctions.
• Programmable watch dog safe frequency.
• Support I2C Index read/write and block read/write operations.
• Uses external 14.318MHz crystal.

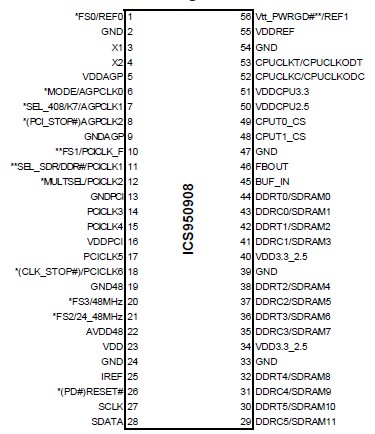

Pinout

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Logic Inputs . . . . . . . . . . . . . .  . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . . . . . . . 0°C to +70°C
Case Temperature . . . . . . . . . . .  . . . . . . . . . . . . . . . . . 115°C
Storage Temperature . . . . . . . . .  . . . . . . . 65°C to +150°C


Description

The ICS950908 is a single chip clock solution for desktop designs using the VIA Pro266/PN266/CLE266/CM400 chipset with PC133 or DDR memory.

The ICS950908 is part of a whole new line of ICS clock generators and buffers called TCH™ (Timing Control Hub). This part incorporates ICS's newest clock technology which offers more robust features and functionality. Employing the use of a serially programmable I2C interface, this device can adjust the output clocks by configuring the frequency setting, the output divider ratios, selecting the ideal spread percentage, the output skew, the output strength, and enabling/disabling each individual output clock. M/N control of the ICS950908 can configure output frequency with resolution up to 0.1MHz increment.
