ICS950902

Features: • Programmable output frequency.• Programmable output divider ratios.• Programmable output rise/fall time.• Programmable output skew.• Programmable spread percentage for EMI control.• DDR output buffer supports up to 200MHz.• Watchdog timer techn...

product image

ICS950902 Picture
See larger image
SeekIC No. : 004371316 Detail

ICS950902: Features: • Programmable output frequency.• Programmable output divider ratios.• Programmable output rise/fall time.• Programmable output skew.• Programmable spread per...

ICS950902 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS950902
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Programmable output frequency.
• Programmable output divider ratios.
• Programmable output rise/fall time.
• Programmable output skew.
• Programmable spread percentage for EMI control.
• DDR output buffer supports up to 200MHz.
• Watchdog timer technology to reset system if system malfunctions.
• Programmable watch dog safe frequency.
• Support I2C Index read/write and block read/write operations.
• Uses external 14.318MHz crystal.


Pinout

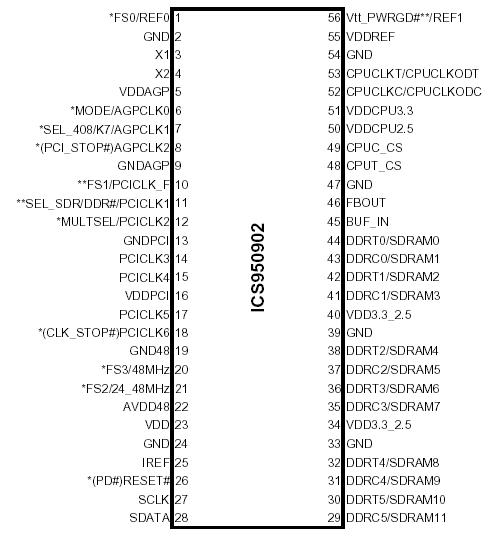

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Logic Inputs . . . . . . . . . . . .  GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . 0°C to +70°C
Case Temperature . . . . . . . . . . . . . . . . . . . . . . 115°C
Storage Temperature . . . . . . . . . . 65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
