ICS94215

Features: • Programmable ouput frequency.• Programmable ouput rise/fall time.• Programmable PCI_F and PCICLK skew.• Spread spectrum for EMI control typically by 7dB to 8dB,with programmable spread percentage.• Watchdog timer technology to reset system if over-clocking...

product image

ICS94215 Picture
See larger image
SeekIC No. : 004371301 Detail

ICS94215: Features: • Programmable ouput frequency.• Programmable ouput rise/fall time.• Programmable PCI_F and PCICLK skew.• Spread spectrum for EMI control typically by 7dB to 8dB,wi...

ICS94215 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS94215
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Programmable ouput frequency.
• Programmable ouput rise/fall time.
• Programmable PCI_F and PCICLK skew.
• Spread spectrum for EMI control typically by 7dB to 8dB,with programmable spread percentage.
• Watchdog timer technology to reset system if over-clocking causes malfunction.
• Uses external 14.318MHz crystal.
• FS pins for frequency select


Pinout

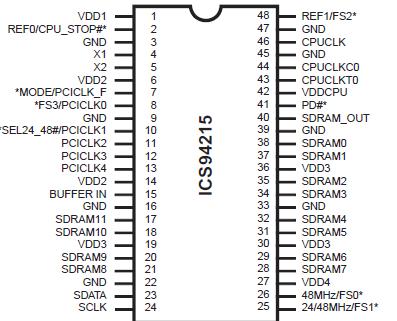

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . 5.5V
Logic Inputs . . . . . . . . . .  GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . .  0°C to +70°C
Storage Temperature . . . . . . . . . . 65°C to +150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These
ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.


Description

The ICS94215 is a main clock synthesizer chip for AMD-K7 based systems with VIA style chipset. This provides all clocks required for such a system.

The ICS94215 belongs to ICS new generation of programmable system clock generators. It employs serial programming I2C interface as a vehicle for changing output functions, changing output frequency, configuring output trength, configuring output to output skew, changing spread spectrum amount, changing group divider ratio and dis/
enabling individual clocks. This ICS94215 also has ICS propriety 'Watchdog Timer' technology which will reset the frequency to a safe setting if the system become unstable from over clocking.
