Product Details

Description



Features:

• Programmable ouput frequency.
• Programmable ouput rise/fall time for PCI and SDRAM clocks.
• Programmable 3V66 to PCI skew.
• Spread spectrum for EMI control with programmable spread percentage.
• Watchdog timer technology to reset system if over-clocking causes malfunction.
• Support power management through PD#.
• Uses external 14.318MHz crystal.
• FS pins for frequency select


Pinout

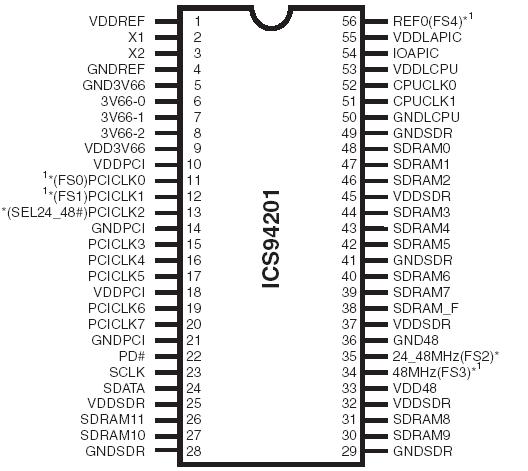

Connection Diagram


Specifications

Core Supply Voltage . . . . . . . . . . . . . . . . . . . . . . .  4.6 V
I/O Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . 3.6V
Logic Inputs . . . . . . . . . . . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . .. 0°C to +70°C
Storage Temperature . . . . . . . . . . .65°C to +150°C
Case Temperature . . . . . . . . . . . . . . . . . . . . .  . 115°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
