ICS93V855

Features: • Low skew, low jitter PLL clock driver• External feedback pins for input to output synchronization• Spread Spectrum tolerant inputs• With bypass mode mux• Operating frequency 60 to 170 MHzPinoutSpecificationsSupply Voltage: (VDD & AVDD) . . . . . . . . ...

product image

ICS93V855 Picture
SeekIC No. : 004371294 Detail

ICS93V855: Features: • Low skew, low jitter PLL clock driver• External feedback pins for input to output synchronization• Spread Spectrum tolerant inputs• With bypass mode mux• Op...

floor Price/Ceiling Price

Part Number:
ICS93V855
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low skew, low jitter PLL clock driver
• External feedback pins for input to output synchronization
• Spread Spectrum tolerant inputs
• With bypass mode mux
• Operating frequency 60 to 170 MHz



Pinout

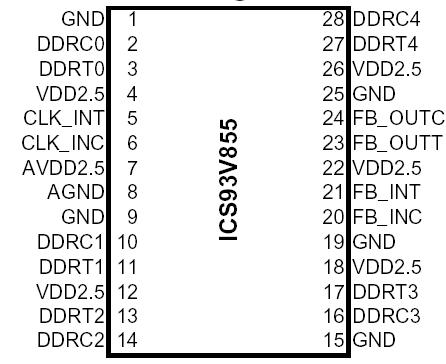

  Connection Diagram


Specifications

Supply Voltage: (VDD & AVDD) . . . . . . . . . . . . . . . . . . . .-0.5V to 3.6V
                              (VDDI) . . . . . . . . . . . . . . . . . . . . . . . -0.5V to 4.6V
Logic Inputs: VI . . . . . . . . . . . . . . . . . . . . .VSS 0.5 V to VDD +0.5 V
Logic Outputs: VO. . . . . . . . . . . . . . . . . . . .VSS 0.5 V to VDD +0.5 V
Input clamp current: IIK (VI < 0 or VI > VDD) . . . . . . . . . . . .+/- 50mA
Output clamp current: IOK (VO < 0 or VO > VDD)  . . . . . . . .  +/- 50mA
Continuous output current: IO (VO = 0 to VDD)  . . . . . . . . . .+/- 50mA
Storage Temperature . . . . . . . . . . . . . . . . . . .  . .65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
