ICS93738

Features: • Low skew, fanout buffer• 1 to 12 differential clock distribution• I2C for functional and output control• Feedback pin for input to output synchronization• Supports up to 4 DDR DIMMs or 3 SDRAM DIMMs + 2 DDR DIMMs• Frequency supports up to 200MHz (DDR...

product image

ICS93738 Picture
See larger image
SeekIC No. : 004371291 Detail

ICS93738: Features: • Low skew, fanout buffer• 1 to 12 differential clock distribution• I2C for functional and output control• Feedback pin for input to output synchronization• S...

ICS93738 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS93738
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low skew, fanout buffer
• 1 to 12 differential clock distribution
• I2C for functional and output control
• Feedback pin for input to output synchronization
• Supports up to 4 DDR DIMMs or 3 SDRAM DIMMs + 2 DDR DIMMs
• Frequency supports up to 200MHz (DDR400)
• Supports Power Down Mode for power mananagement
• CMOS level control signal input

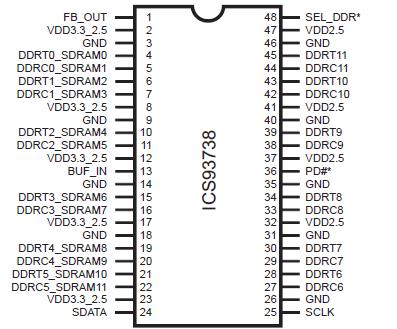

Pinout

Connection Diagram


Specifications

Supply Voltage (VDD & VDD2.5) . . . . . . . 0.5V to 3.6V
Logic Inputs . . . . . . . . . . .. GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . .. .0°C to +85°C
Case Temperature . . . . . . . . . . . . . . . . . . . .... 115°C
Storage Temperature . . . . . . . . . .. 65°C to +150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
