ICS93725

Features: • Low skew, Zero Delay Buffer• 1 to 13 SDRAM PC133 clock distribution• 1 to 6 pairs of DDR clock distribution• I2C for functional and output control• Separate feedback path for both memory mode to adjust synchronization.• Supports up to 2 DDR DIMMs or ...

product image

ICS93725 Picture
See larger image
SeekIC No. : 004371288 Detail

ICS93725: Features: • Low skew, Zero Delay Buffer• 1 to 13 SDRAM PC133 clock distribution• 1 to 6 pairs of DDR clock distribution• I2C for functional and output control• Separate...

ICS93725 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS93725
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Low skew, Zero Delay Buffer
• 1 to 13 SDRAM PC133 clock distribution
• 1 to 6 pairs of DDR clock distribution
• I2C for functional and output control
• Separate feedback path for both memory mode to adjust synchronization.
• Supports up to 2 DDR DIMMs or 3 SDRAM DIMMs
• Frequency support for up to 200MHz
• Individual I2C clock stop for power mananagement
• CMOS level control signal input


Pinout

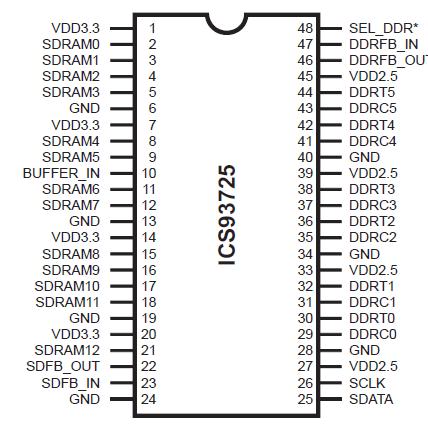

Connection Diagram


Specifications

Supply Voltage (VDD & VDD2.5).........................-0.5V to 3.6V
Logic Inputs............................GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature....................... 0°C to +85°C
Case Temperature  ..................................115°C
Storage Temperature  ..........................65°C to +150°C

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
