ICS932S200

Features: • Generates the following system clocks:- 6 CPU clocks ( 2.5V, 100/133MHz)- 6 PCI clocks, including 1 free running(3.3V, 33MHz)- 3 IOAPIC clocks (2.5V, 16.67MHz)- 2 Fixed frequency 66MHz clocks(3.3V, 66MHz)- 2 REF clocks(3.3V, 14.318MHz)- 1 USB clock (3.3V, 48MHz)• Efficient ...

product image

ICS932S200 Picture
See larger image
SeekIC No. : 004371279 Detail

ICS932S200: Features: • Generates the following system clocks:- 6 CPU clocks ( 2.5V, 100/133MHz)- 6 PCI clocks, including 1 free running(3.3V, 33MHz)- 3 IOAPIC clocks (2.5V, 16.67MHz)- 2 Fixed frequency 6...

ICS932S200 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS932S200
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/10/17

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Generates the following system clocks:
- 6 CPU clocks ( 2.5V, 100/133MHz)
- 6 PCI clocks, including 1 free running(3.3V, 33MHz)
- 3 IOAPIC clocks (2.5V, 16.67MHz)
- 2 Fixed frequency 66MHz clocks(3.3V, 66MHz)
- 2 REF clocks(3.3V, 14.318MHz)
- 1 USB clock (3.3V, 48MHz)
• Efficient power management through PD#,
  CPU_STOP# and PCI_STOP#.
• 0.5% typical down spread modulation on CPU, PCI,
  IOAPIC and 3V66 output clocks.
• Uses external 14.318MHz crystal.


Pinout

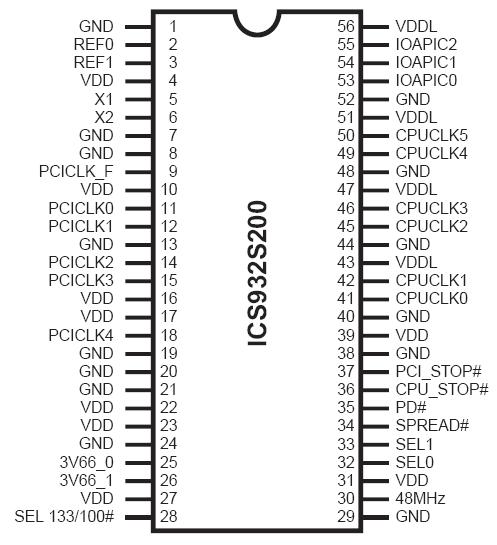

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 7.0 V
Logic Inputs . . . . . . . . . . . . . . . . . . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . . . . . .  . . .  0°C to +70°C
Storage Temperature . . . . . . . . . . . . . . . . . . .  65°C to +150°C


Description

The ICS932S200 is a dual CPU clock generator for serverworks HE-T, HE-SL-T, LE-T chipsets for P III type processors in a Dual-CPU system. Single ended CPU clocks provide faster than 1.5V/ns transition times by parallel connection of 2 CPU pins to each processor.

Spread Spectrum may be enabled by driving the SPREAD# pin active. Spread spectrum typically reduces system EMI by 8dB to 10dB. This simplifies EMI qualification without resorting to board design iterations or costly shielding. The ICS932S200 employs a proprietary closed loop design, which tightly controls the percentage of spreading over process and temperature variations.
