ICS9250-22

Features: • Support power management: Power Down Mode• Supports Spread Spectrum modulation: 0 to -0.5% down spread.• Uses external 14.318MHz crystal• Select logic for Differential Swing Control, Test mode, Tristate, Power down, Spread Spectrum, limited frequency select, se...

product image

ICS9250-22 Picture
See larger image
SeekIC No. : 004371270 Detail

ICS9250-22: Features: • Support power management: Power Down Mode• Supports Spread Spectrum modulation: 0 to -0.5% down spread.• Uses external 14.318MHz crystal• Select logic for Differe...

ICS9250-22 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS9250-22
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Support power management: Power Down Mode
• Supports Spread Spectrum modulation: 0 to -0.5% down spread.
• Uses external 14.318MHz crystal
• Select logic for Differential Swing Control, Test mode, Tristate, Power down, Spread Spectrum, limited
   frequency select, selective clock enable.
• External resistor for current reference
• FS pins for frequency select


Pinout

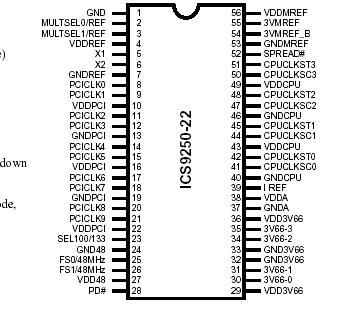

Connection Diagram


Specifications

Supply Voltage ........................................................ 5.5 V
Logic Inputs .......................... GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature.................. 0 to +70
Case Temperature ..................................................115
Storage Temperature ............................65 to +150

Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.


Description

The ICS9250-22 is a single chip clock solution.

Spread spectrum typically reduces system EMI by 8dB to 10dB. This simplifies EMI qualification without resorting to
board design iterations or costly shielding. The ICS9250-22 employs a proprietary closed loop design, which tightly
controls the percentage of spreading over process and temperature variations.
