Product Details

Description



Features:

• Up to 150MHz frequency support
• Support power management: CPU, PCI, stop and Power down Mode form I2C programming.
• Spread spectrum for EMI control (0 to -0.5%, ± 0.25%).
• Uses external 14.318MHz crystal


Pinout

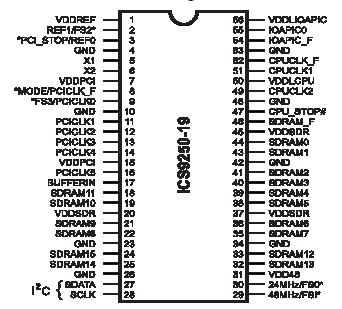

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .  .5.5 V
Logic Inputs . . . . . . . . . . . . . . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . . . . . 0°C to +70°C
Case Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . 115°C
Storage Temperature . . . . . . . . . . . . .  65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
