ICS9250-10

Features:

· Generates the following system clocks:
- 3 CPU (2.5V) 66.6/100 MHz (up to 133MHz through I²C selection)
- 9 SDRAM (3.3V) up to 133MHz
- 8 PCI (3.3 V) @33.3MHz
- 2 IOAPIC (2.5V) @16.67 or 33.3MHz
- 2 Hublink clocks (3.3 V) @ 66.6 MHz
- 2 USB (3.3V) @ 48 MHz ( Non spread spectrum)
- 1 REF (3.3V) @ 14.318 MHz
· Supports spread spectrum modulation , down spread 0 to -0.5%
· I²C support for power management
· Efficient power management scheme through PD#
· Uses external 14.138 MHz crystal

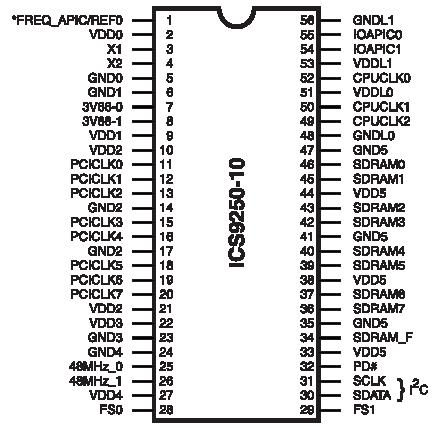

Pinout




Specifications

Core Supply Voltage . . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  4.6 V
I/O Supply Voltage . . . . . . . . . . . . . . . . . . . . . .  .  .  .  .  . . . 3.6V
Logic Inputs . . . . . . . . . . . . . . . . . . . . GND -0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . . . . . . . . 0°C to +70°C
Storage Temperature . . . . . . . . . . . . . . . . . . -65°C to +150°C


Description

The ICS9250-10 is a single chip clock for Intel Pentium II. It provides all necessary clock signals for such a system. Spread spectrum may be enabled through I2C programming. Spread spectrum typically reduces EMI by 8dB to 10 dB.

This simplifies EMI qualification of the ICS9250-10 without resorting to board design iterations or costly shielding. The ICS9250-10 employs a proprietary closed loop design, which tightly controls the percentage of spreading over process and temperature variations.
