ICS9248-163

Features: • Up to 166MHz frequency support• Support power management: CPU stop and Power down Mode from I2C programming.• Spread spectrum for EMI control (± 0.25% center spread).• Uses external 14.318MHz crystalPinoutSpecificationsSupply Voltage. . . . . . . . . . . . . . ....

product image

ICS9248-163 Picture
See larger image
SeekIC No. : 004371240 Detail

ICS9248-163: Features: • Up to 166MHz frequency support• Support power management: CPU stop and Power down Mode from I2C programming.• Spread spectrum for EMI control (± 0.25% center spread).&#...

ICS9248-163 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS9248-163
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/24

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Up to 166MHz frequency support
• Support power management: CPU stop and Power down Mode from I2C programming.
• Spread spectrum for EMI control (± 0.25% center spread).
• Uses external 14.318MHz crystal

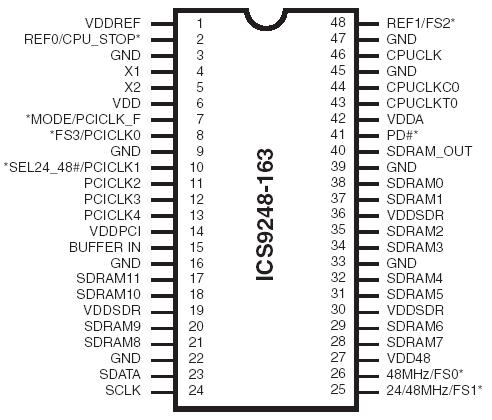

Pinout

Connection Diagram


Specifications

Supply Voltage. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5V
Logic Inputs. . . . . . . . . . . . . . . . . .. .GND -0.5V to VDD +0.5V
Ambient Operating Temperature. . . . . . . . . . .  .0 to + 70
Storage Temperature. . . . . . . . . . . . . . . . . .-65 to + 150
Stresses above those listed under Absolute Maximum Ratings may cause permanent damage to the device. These ratings are stress specifications only and functional operation of the device at these or any other conditions above those listed in the operational sections of the specifications is not implied. Exposure to absolute maximum rating conditions for extended periods may affect product reliability.
