ICS9248-141

Features: • 1 - Differential pair open drain CPU clocks• 1 - Single-ended open drain CPU clock• 13 - SDRAM @ 3.3V• 6 - PCI @3.3V,• 1 - 48MHz, @3.3V fixed.• 1 - 24/48MHz @ 3.3V• 2 - REF @3.3V, 14.318MHz.• Up to 166MHz frequency support• Support ...

product image

ICS9248-141 Picture
See larger image
SeekIC No. : 004371233 Detail

ICS9248-141: Features: • 1 - Differential pair open drain CPU clocks• 1 - Single-ended open drain CPU clock• 13 - SDRAM @ 3.3V• 6 - PCI @3.3V,• 1 - 48MHz, @3.3V fixed.• 1 - 24...

ICS9248-141 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS9248-141
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1 - Differential pair open drain CPU clocks
• 1 - Single-ended open drain CPU clock
• 13 - SDRAM @ 3.3V
• 6 - PCI @3.3V,
• 1 - 48MHz, @3.3V fixed.
• 1 - 24/48MHz @ 3.3V
• 2 - REF @3.3V, 14.318MHz.
• Up to 166MHz frequency support
• Support power management: CPU stop and Power down Mode from I2C programming.
• Spread spectrum for EMI control (± 0.25% center spread).
• Uses external 14.318MHz crystal


Pinout

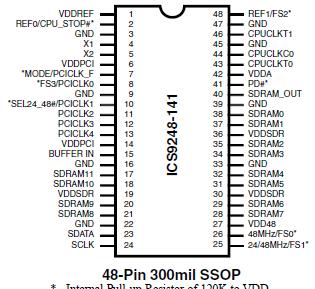

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . .  . . . . . . . . . . . . . 5.5V
Logic Inputs . . . . . . . . . . . . . . . . . . . . . . . .. . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . .. . . . .  . . . . . . . . . . . . 0°C to +70°C
Storage Temperature . . . . . . . . . . . . . . . .  . . . . . . . . 65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause
permanent damage to the device. These ratings are stress specifications
only and functional operation of the device at these or any other conditions
above those listed in the operational sections of the specifications is not
implied. Exposure to absolute maximum rating conditions for extended periods
may affect product reliability.


Description

The ICS9248-141 is a main clock synthesizer chip for AMD-K7 based systems with VIA style chipset. This provides all clocks required for such a system.

Spread spectrum may be enabled through I2C programming. Spread spectrum typically reduces system EMI by 8dB to 10dB. This simplifies EMI qualification without resorting to board design iterations or costly shielding. The ICS9248-141 employs a proprietary closed loop design, which tightly controls the percentage of spreading over process and temperature variations.

Serial programming I2C interface allows changing functions, stop clock programming and frequency selection.
