ICS9248-114

Features: • 1 - Differential pair open drain CPU clocks• 1 - Single-ended open drain CPU clock• 13 - SDRAM @ 3.3V• 6 - PCI @3.3V,• 1 - 48MHz, @3.3V fixed.• 1 - 24/48MHz @ 3.3V• 2 - REF @3.3V, 14.318MHz.• Up to 155MHz frequency support• Support ...

product image

ICS9248-114 Picture
See larger image
SeekIC No. : 004371225 Detail

ICS9248-114: Features: • 1 - Differential pair open drain CPU clocks• 1 - Single-ended open drain CPU clock• 13 - SDRAM @ 3.3V• 6 - PCI @3.3V,• 1 - 48MHz, @3.3V fixed.• 1 - 24...

ICS9248-114 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS9248-114
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 1 - Differential pair open drain CPU clocks
• 1 - Single-ended open drain CPU clock
• 13 - SDRAM @ 3.3V
• 6 - PCI @3.3V,
• 1 - 48MHz, @3.3V fixed.
• 1 - 24/48MHz @ 3.3V
• 2 - REF @3.3V, 14.318MHz.• Up to 155MHz frequency support
• Support power management: CPU stop and Power down Mode from I2C programming.
• Spread spectrum for EMI control (0 to -0.5% down spread, ± 0.25% center spread).
• Uses external 14.318MHz crystal


Pinout

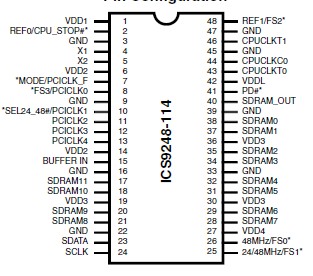

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . . . 5.5 V
Logic Inputs . . . . . . . . . . . .. . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . . . 0°C to +70°C
Storage Temperature . . . . . . . . . . . . 65°C to +150°C


Description

The ICS9248-114 is a main clock synthesizer chip for AMD-K7 based systems with VIA style chipset. This provides all clocks required for such a system. Spread spectrum may be enabled through I2C programming. Spread spectrum typically reduces system EMI by 8dB to 10dB.

This simplifies EMI qualification of the ICS9248-114 without resorting to board design iterations or costly shielding. The ICS9248-114 employs a proprietary closed loop design, which tightly controls the percentage of spreading over process and emperature variations.

Serial programming I2C interface of the ICS9248-114 allows changing functions, stop clock programming and frequency selection.
