ICS9248-112

Features: • 2- CPUs @2.5V, up to 150MHz.• 9 - SDRAM @ 3.3V, up to150MHz including 1 free running• 8 - PCICLK @ 3.3V• 1 - IOAPIC @ 2.5V, PCI or PCI/2 MHz• 2 - 3V66MHz @ 3.3V, 2X PCI MHz• 1- 48MHz, @3.3V fixed.• 1- 24MHz, @3.3V fixed• 1- REF @3.3V, 14....

product image

ICS9248-112 Picture
See larger image
SeekIC No. : 004371224 Detail

ICS9248-112: Features: • 2- CPUs @2.5V, up to 150MHz.• 9 - SDRAM @ 3.3V, up to150MHz including 1 free running• 8 - PCICLK @ 3.3V• 1 - IOAPIC @ 2.5V, PCI or PCI/2 MHz• 2 - 3V66MHz @ ...

ICS9248-112 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS9248-112
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/21

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• 2- CPUs @2.5V, up to 150MHz.
• 9 - SDRAM @ 3.3V, up to150MHz including 1 free running
• 8 - PCICLK @ 3.3V
• 1 - IOAPIC @ 2.5V, PCI or PCI/2 MHz
• 2 - 3V66MHz @ 3.3V, 2X PCI MHz
• 1- 48MHz, @3.3V fixed.
• 1- 24MHz, @3.3V fixed
• 1- REF @3.3V, 14.318MHz.
• Up to 166MHz frequency support
• Support FS0-FS3 strapping status bit for I2C read back.
• Support power management: Through Power down Mode from I2C programming.
• Spread spectrum for EMI control ( ± 0.25% center).
• Spread can be enabled or disabled to all 32 frequencies throuth I2C.
• Uses external 14.318MHz crystal


Application

810/810E type chipset


Pinout

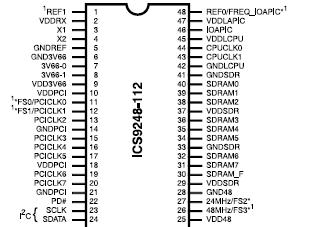

Connection Diagram


Specifications

Supply Voltage . . . . . . . . . . . . . . . . . . . . . . . . . . ... . . . . . . . . . . . . . . . . . 5.5V
Logic Inputs . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . GND 0.5 V to VDD +0.5 V
Ambient Operating Temperature . . . . . . . . . . . .. . . . . . . . . . . . 0°C to +70°C
Storage Temperature . . . . . . . . . . . . . . . . . . . . . . . . . . . .. 65°C to +150°C
Stresses above those listed under Absolute Maximum Ratings may cause
permanent damage to the device. These ratings are stress specifications
only and functional operation of the device at these or any other conditions
above those listed in the operational sections of the specifications is not implied.
Exposure to absolute maximum rating conditions for extended periods
may affect product reliability.
