ICS726

Features:

•Uses an inexpensive 12 to 36 MHz external crystal
•Output frequency range of 12 to 36 MHz
•On-chip VCXO with guaranteed pull range of ±115
  ppm minimum
•VCXO tuning voltage 0 to 3.3 V
•Packaged in 6-pin TSOT-23-6
•Available in Pb (lead) free package

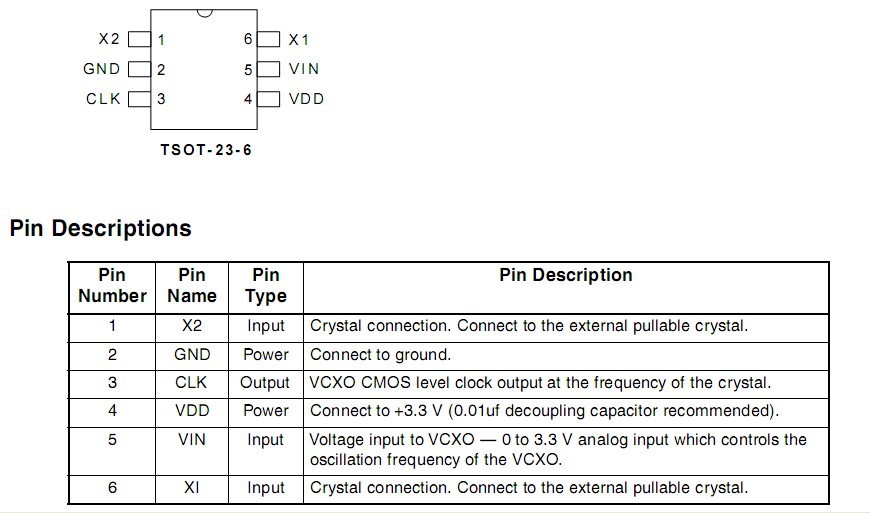

Pinout




Specifications

               Item                                                             Rating

Supply Voltage,                                                                      VDD7 V
All Inputs and Outputs                                       -0.5 V to VDD+0.5 V
Ambient Operating Temperature                                     0 to +70°C
Storage Temperature                                                 -65 to +150°C
Soldering Temperature                                                           260°C


Description

Used in conjunction with an external pullable quartz crystal, this monolithic integrated circuit replaces more costly hybrid (canned) VCXO devices. The ICS726 is designed primarily for data and clock recovery applications such as ADSL modems, set-top box receivers, and telecom systems.

The frequency of the on-chip VCXO is adjusted by an external control voltage to the VIN pin. Since VIN is a high impedance input, it can be driven directly from an PWM RC integrator circuit. Frequency output of the ICS726 increases with VIN voltage input. The usable range of VIN is 0 to 3.3 V.
