ICS581-01

Features: • Tiny 16 pin TSSOP package• No short pulses or glitches on output. Operates to 200 MHz• User controlled (ICS581-01) or automatic, timed (ICS581-02) switch• Low skew outputs• Ideal for systems with backup or redundant clocks• Zero delay, input to outpu...

product image

ICS581-01 Picture
See larger image
SeekIC No. : 004370833 Detail

ICS581-01: Features: • Tiny 16 pin TSSOP package• No short pulses or glitches on output. Operates to 200 MHz• User controlled (ICS581-01) or automatic, timed (ICS581-02) switch• Low ske...

ICS581-01 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS581-01
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Tiny 16 pin TSSOP package
• No short pulses or glitches on output. Operates to 200 MHz
• User controlled (ICS581-01) or automatic, timed (ICS581-02) switch
• Low skew outputs
• Ideal for systems with backup or redundant clocks
• Zero delay, input to output
• 50% output duty cycle allows duty cycle correction
• Spread Smart™ technology works with spread spectrum parts


Pinout

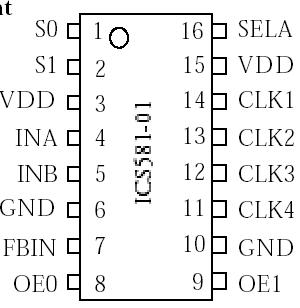

Connection Diagram


Specifications

Parameter Conditions Minimum Typical Maximum Units
Supply voltage, VDD Referenced to GND     7 V
Inputs and Clock Outputs Referenced to GND -0.5   VDD+0.5 V
Ambient Operating Temperature   0   70 °C
ICS581G-01I -40   80 °C
Soldering Temperature Max of 10 seconds     260 °C
Storage temperature   -65   150 °C



Description

The ICS581-01 and ICS581-02 are glitch free, Phase Locked Loop (PLL) based clock multiplexers (mux) with zero delay from input to output. They each have 4 low skew outputs which can be configured as a single output, 3 outputs or 4 outputs. The ICS581-01 allows user control over the mux switching. The ICS581-02 has automatic switching between the 2 clock inputs.

The ICS581-01 and -02 are members of the ICS Clock Blocks™ family of clock generation, synchronization, and distribution devices. For a non-PLL based clock mux, see the ICS580-01.
