Product Details

Description

Features:

* Packaged in 16 pin narrow (150 mil) SOIC
* No short pulses or glitches on output
* Operates to 200 MHz
* Does not add jitter or phase noise to the clock
* User controlled or automatic switching
* Low skew outputs
* Clock detect feature
* Ideal for systems with backup or redundant clocks
* Selectable timeouts for clock detection
* Separate supply voltages allow power supply voltage translation
* Operates to 2.5 V

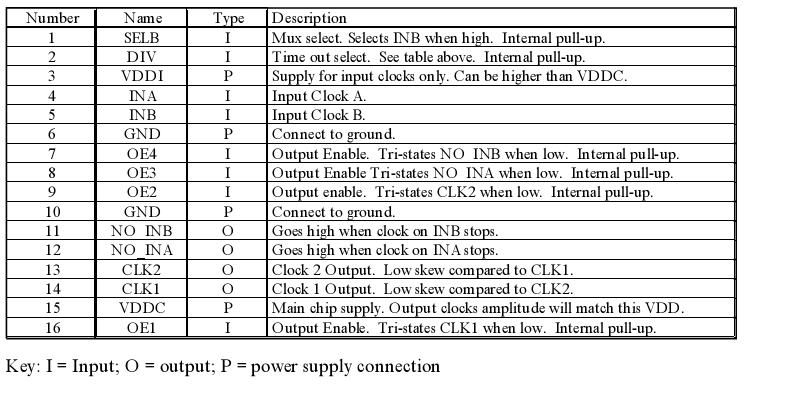

Pinout

Connection Diagram

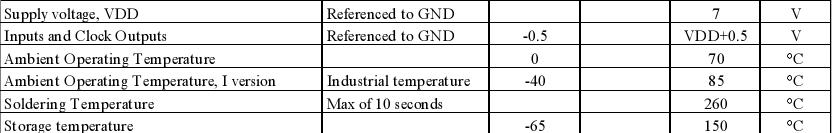

Specifications

Connection Diagram

Description

The ICS580-01 is a clock multiplexer (mux) designed to switch between 2 clock sources with no glitches or short pulses. The operation of the mux controlled by an input pin but the part can also be configured to switch automatically if one of the input clocks stops. The part also provides clock detection by reporting when an input clock has stopped.

For a clock mux with zero delay and smooth switching, see either the ICS580-01.
