ICS571

Features: • Packaged in 8 pin SOIC.• Can function as low phase noise x2 multiplier.• Low skew outputs. One is ÷2 of other.• Input clock frequency up to 160 MHz at 3.3V.• Phase noise of better than -100 dBc/Hz from 1kHz to 1MHz offset from carrier• Can recover po...

product image

ICS571 Picture
SeekIC No. : 004370830 Detail

ICS571: Features: • Packaged in 8 pin SOIC.• Can function as low phase noise x2 multiplier.• Low skew outputs. One is ÷2 of other.• Input clock frequency up to 160 MHz at 3.3V.•...

floor Price/Ceiling Price

Part Number:
ICS571
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 8 pin SOIC.
• Can function as low phase noise x2 multiplier.
• Low skew outputs. One is ÷2 of other.
• Input clock frequency up to 160 MHz at 3.3V.
• Phase noise of better than -100 dBc/Hz from 1kHz to 1MHz offset from carrier
• Can recover poor input clock duty cycle.
• Output clock duty cycle of 45/55 at 3.3V.
• High drive strength for >100 MHz outputs.
• Full CMOS clock swings with 25mA drive capability at TTL levels.
• Advanced, low power CMOS process.
• Operating voltages of 3.0 to 5.5 V.

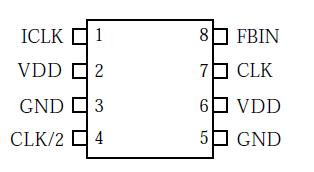

Pinout

  Connection Diagram




Specifications

Parameter Conditions
Minimum
Typical
Maximum
Unit
Supply Voltage, VDD Referenced to GND
7
V
Inputs Referenced to GND
0.5
VDD+0.5
V
Clock Output Referenced to GND
0.5
VDD+0.5
V
Ambient Operating Temperature
0
70
Soldering Temperature Max of 10 seconds
260
Storage temperature
-65
150




Description

The ICS571 is a high speed, high output drive, low phase noise Zero Delay Buffer (ZDB) which integrates ICS' proprietary analog/digital Phase ocked Loop (PLL) techniques. ICS introduced the world standard for these devices in 1992 with the debut of the AV9170, and updated that with the ICS570. The ICS571, part of ICS' ClockBlocks™ family, was designed to operate at higher frequencies, with faster rise and fall times, and with lower phase noise. The zero delay feature of the ICS571 means that the rising edge of the input clock aligns with the rising edges of both outputs, giving the appearance of no delay through the device. There are two outputs on the chip, one being a low-skew divide by two of the other.

The chip is ideal for synchronizing outputs in a large variety of systems, from personal computers to data communications to video. By allowing offchip feedback paths, the ICS571 can eliminate the delay through other devices. The use of dividers in the feedback path will enable the part to multiply by more than two.
