ICS557-08

Features: • Packaged in 16-pin TSSOP• Available in Pb (lead) free package• Operating voltage of 3.3 V• Low power consumption• Input clock frequency of up to 200 MHz for HCSL and up to 100 MHz for LVDS• Jitter 60 ps (cycle-to-cycle)PinoutSpecifications Item ...

product image

ICS557-08 Picture
See larger image
SeekIC No. : 004370826 Detail

ICS557-08: Features: • Packaged in 16-pin TSSOP• Available in Pb (lead) free package• Operating voltage of 3.3 V• Low power consumption• Input clock frequency of up to 200 MHz for...

ICS557-08 Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS557-08
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/12/25

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 16-pin TSSOP
• Available in Pb (lead) free package
• Operating voltage of 3.3 V
• Low power consumption
• Input clock frequency of up to 200 MHz for HCSL and up to 100 MHz for LVDS
• Jitter 60 ps (cycle-to-cycle)

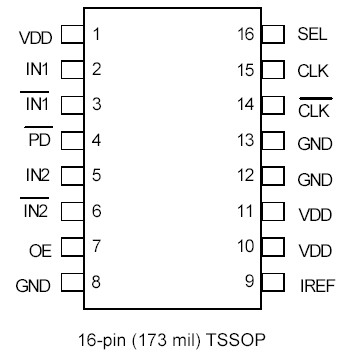

Pinout

Connection Diagram


Specifications

Item Rating
Supply Voltage, VDD
All Inputs and Outputs
Ambient Operating Temperature
Storage Temperature
Junction Temperature
Soldering Temperature
ESD Protection (Input)		 7 V
-0.5 V to VDD+0.5 V
-40 to +85°C
-65 to +150°C
125°C
260°C
2000 V min. (HBM)



Description

The ICS557-08 is a 2:1 multiplexer chip that allows the user to select one of the two HCSL (Host Clock Signal Level) or LVDS input pairs and fan out to one pair of differential HCSL or LVDS outputs. This chip is suited especially for PCI-Express applications, where there is a need to select the PCI-Express clock either locally from the PCI-E card or from the motherboard.
