Features: • Packaged in 20-pin TSSOP• Available in Pb (lead) free package• Operating voltage of 3.3 V• Low power consumption• Input differential clock of up to 200 MHz for HCSL and up to 100 MHz for LVDS• Jitter 60 ps (cycle-to-cycle)• Output-to-output ske...
ICS557-06: Features: • Packaged in 20-pin TSSOP• Available in Pb (lead) free package• Operating voltage of 3.3 V• Low power consumption• Input differential clock of up to 200 MHz ...
SeekIC Buyer Protection PLUS - newly updated for 2013!
268 Transactions
All payment methods are secure and covered by SeekIC Buyer Protection PLUS.
Item | Rating |
Supply Voltage, VDD, VDDA All Inputs and Outputs Ambient Operating Temperature (commercial) Ambient Operating Temperature (industrial) Storage Temperature Junction Temperature Soldering Temperature ESD Protection (Input) |
5.5 V -0.5 V to VDD+0.5 V 0 to +70°C -40 to +85°C -65 to +150°C 125°C 260°C 2000 V min. (HBM) |

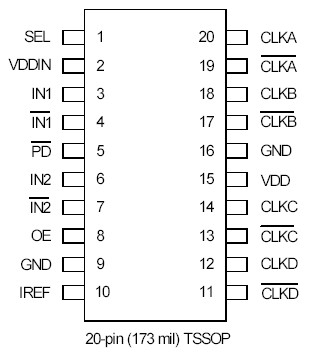

The ICS557-06 is a one to four differential clock buffer designed for use in PCI-Express applications. The device selects one of the two differential HCSL or LVDS input pairs and fans out to four pairs of differential HCSL or LVDS outputs.
