Product Details

Description

Features:

• Packaged in 20-pin TSSOP
• Available in RoHS 5 (green) or RoHS 6 (green and lead free) complaint package
• Supports PCI-Express applications
• Four differential spread spectrum clock outputs
• Spread spectrum for EMI reduction
• Uses external 25 MHz clock or crystal input
• Power down pin turns off chip
• OE control tri-states outputs
• Spread and frequency selection via external pins
• Spread Bypass option available
• Industrial temperature range available

Pinout

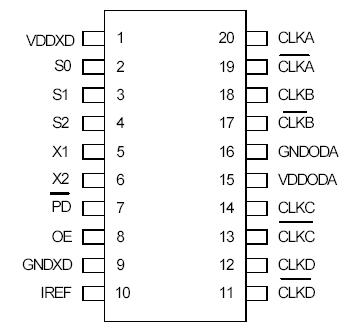

Connection Diagram

Specifications

Item	Rating
Supply Voltage, VDD, VDDA All Inputs and Outputs Ambient Operating Temperature (commercial) Ambient Operating Temperature (industrial) Storage Temperature Junction Temperature Soldering Temperature ESD Protection (Input)	5.5 V -0.5 V to VDD+0.5 V 0 to +70°C -40 to +85°C -65 to +150°C 125°C 260°C 2000 V min. (HBM)

Description

The ICS557-05A is a spread-spectrum clock generator that supports PCI-Express requirements. It is used in PC or embedded systems to substantially reduce electro-magnetic interference (EMI). The device provides four differential HCSL or LVDS high-frequency outputs with spread spectrum capability. The output frequency and spread type are selectable using external pins.
