ICS551 Selling Leads, Price trend, ICS551 DataSheet download, circuit diagram from SeekIC.com

Features: • Packaged in 8 pin SOIC• Low cost clock buffer• Low skew (250ps) outputs• Input/output clock frequency up to 160 MHz• Operating voltages of 3.0 to 5.5 V• Non-inverting• Ideal for networking clocks• Output Enable mode tri-states outputsR...

See larger image

SeekIC No. : 004370808 Detail

ICS551: Features: • Packaged in 8 pin SOIC• Low cost clock buffer• Low skew (250ps) outputs• Input/output clock frequency up to 160 MHz• Operating voltages of 3.0 to 5.5 V̶...

ICS551 Data Sheet

Get Latest Price

Part Number:: ICS551
Supply Ability:: 5000

Price Break

Qty
1~5000

Unit Price
Negotiable

Processing time
15 Days

SeekIC Buyer Protection PLUS - newly updated for 2013!

Escrow Protection.
Guaranteed refunds.
Secure payments.
Learn more >>

Month Sales

268 Transactions

Rating

evaluate (4.8 stars)

Upload time: 2024/11/23

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.

Recent History
What is this?

ICS501 evaluate
Features: • Packaged as 8-pin SOIC or die• Available in Pb (lead) free package• ...
ICS501A evaluate
Features: • Packaged as 8-pin SOIC or die• ICS' lowest cost PLL clock• Zero ppm ...
ICS501AM evaluate
IC PLL CLK MULTIPLIER 8-SOIC

Product Details

Description

Features:

• Packaged in 8 pin SOIC
• Low cost clock buffer
• Low skew (250ps) outputs
• Input/output clock frequency up to 160 MHz
• Operating voltages of 3.0 to 5.5 V
• Non-inverting
• Ideal for networking clocks
• Output Enable mode tri-states outputs
• Full CMOS clock swings with 25mA drive
capability at TTL levels
• Advanced, low power CMOS proces

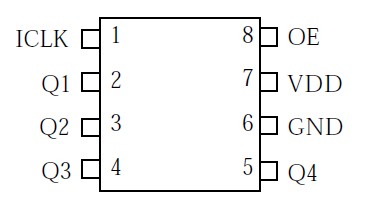

Pinout

Connection Diagram

Specifications

Parameter	Conditions	Minimum	Maximum	Units
Supply voltage, VDD	Referenced to GND		7	V
Inputs and Clock Outputs	Referenced to GND	0.5	VDD+0.5	V
Ambient Operating Temperature		0	70
Soldering Temperature	Max of 20 seconds		260
Storage temperature		-65	150

Description

The ICS551 is a low cost, high speed single input to four output clock buffer. Part of ICS' Clock BlocksTM family, this is our lowest cost, small clock buffer. See the ICS552-01B for a monolithic dual version of the ICS551 in a 20 pin QSOP.

ICS makes many non-PLL and PLL based low skew output devices, as well as Zero Delay Buffers to synchronize clocks. Contact us for all of your clocking needs.
