ICS548-05A

Features: • Packaged in 16 pin TSSOP• Ideal for Cirrus Logic's MP3 chips• Replaces multiple oscillators• 3.3V (will work down to 2.7V) or 5V operation• Uses an inexpensive 3.6864 MHz crystal or clock input• Supports 32 kHz, 44.1 kHz, 48 kHz, and 96 kHz audio sam...

product image

ICS548-05A Picture
See larger image
SeekIC No. : 004370806 Detail

ICS548-05A: Features: • Packaged in 16 pin TSSOP• Ideal for Cirrus Logic's MP3 chips• Replaces multiple oscillators• 3.3V (will work down to 2.7V) or 5V operation• Uses an inexpens...

ICS548-05A Data Sheet

floor Price/Ceiling Price

Get Latest Price
Part Number:
ICS548-05A
Supply Ability:
5000

Price Break

  • Qty
  • 1~5000
  • Unit Price
  • Negotiable
  • Processing time
  • 15 Days
Total Cost: $ 0.00

SeekIC Buyer Protection PLUS - newly updated for 2013!

  • Escrow Protection.
  • Guaranteed refunds.
  • Secure payments.
  • Learn more >>

Month Sales

268 Transactions

Rating

evaluate  (4.8 stars)

Upload time: 2024/11/27

add to my favourite

Payment Methods

All payment methods are secure and covered by SeekIC Buyer Protection PLUS.

Notice: When you place an order, your payment is made to SeekIC and not to your seller. SeekIC only pays the seller after confirming you have received your order. We will also never share your payment details with your seller.
Product Details

Description



Features:

• Packaged in 16 pin TSSOP
• Ideal for Cirrus Logic's MP3 chips
• Replaces multiple oscillators
• 3.3V (will work down to 2.7V) or 5V operation
• Uses an inexpensive 3.6864 MHz crystal or clock input
• Supports 32 kHz, 44.1 kHz, 48 kHz, and 96 kHz audio sampling rates
• Provides 128fs and 256fs clocks
• Zero ppm synthesis error
• Includes Power Down features
• Advanced, low power, sub-micron CMOS process


Pinout

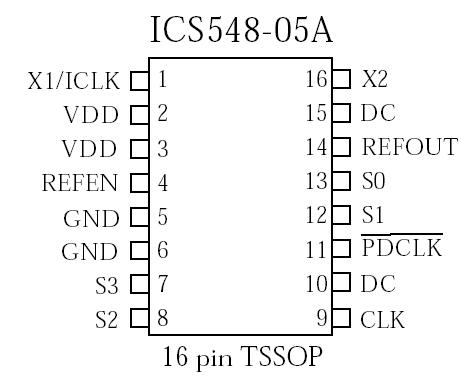

Connection Diagram


Specifications

Parameter Conditions Minimum Typical Maximum Units
Supply voltage, VDD Referenced to GND     7 V
Inputs and Clock Outputs Referenced to GND -0.5   VDD+0.5 V
Ambient Operating Temperature   0   70 °C
Soldering Temperature Max of 10 seconds     260 °C
Storage temperature   -65   150 °C



Description

The ICS548-05A is a low cost, low jitter, high performance clock synthesizer designed to produce audio sampling rates for MP3 systems. Using ICS' patented analog/digital Phase-Locked Loop (PLL) techniques, the device uses an inexpensive 3.6864 MHz crystal or clock input to exactly produce all of the popular audio sampling frequencies. Power down modes allow the chip to be turned off completely, or the PLL and audio clock output to be turned off separately.

ICS manufactures the largest variety of multimedia clock synthesizers for all applications. Consult ICS of the ICS548-05A to eliminate VCXOs, crystals and oscillators from your board.
